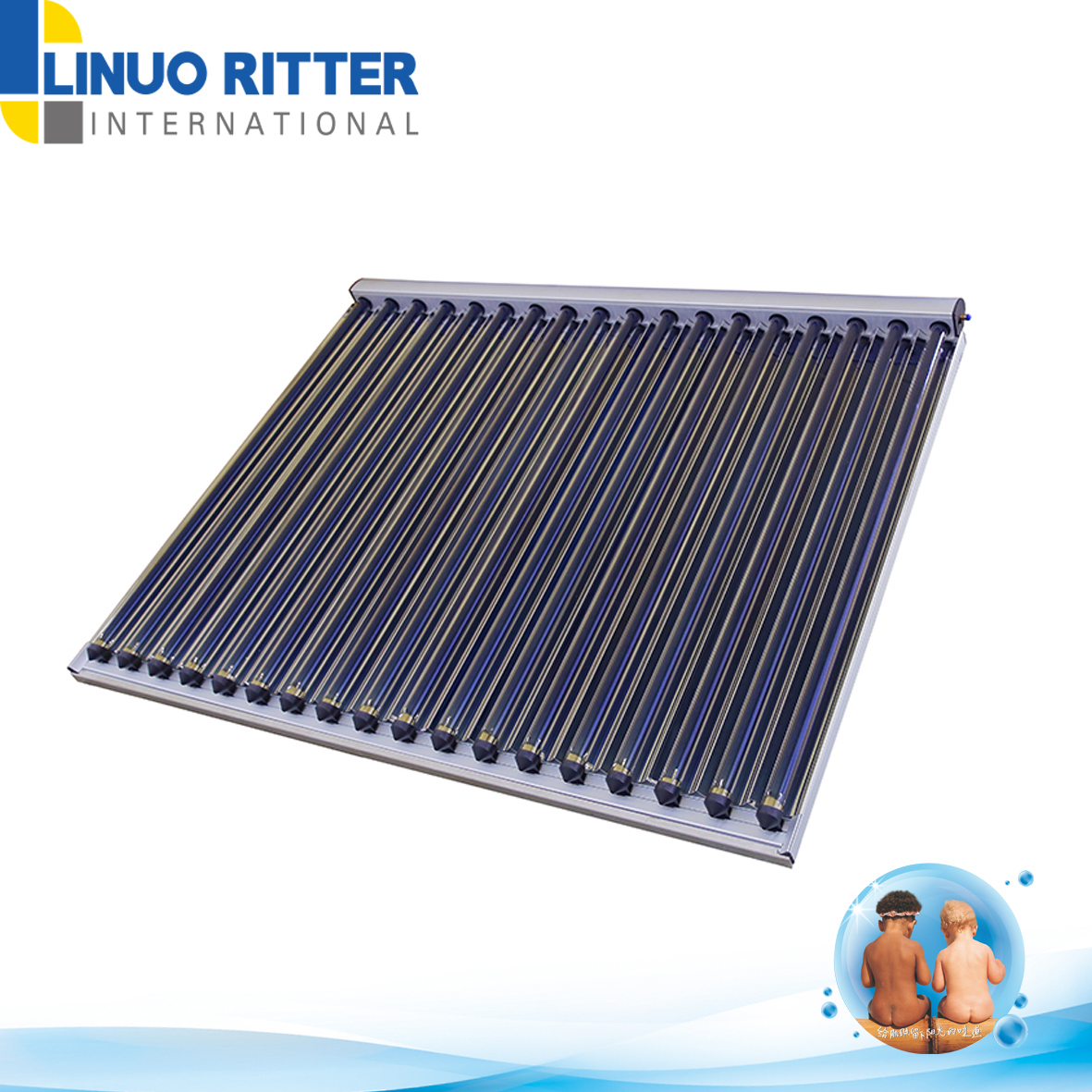

CPC U-pipe solar collector, vacuum tube type collector



Could be used for high temperature solar thermal applications, heating the water up to 130℃, suitable for the industrial process heating, hotels, hospitals, solar cooling, steam, etc.



the CPC U-pipe solar collector is certified by European Solar Keymark, with satisfactory annual energy yield, meanwhile the heat loss is much less.



the energy yield is comparatively higher in the cloudy and winter days, compared to other types of collectors, due to the equipment of the European CPC reflector, thus reducing the application of the backup traditional energy.



Short installation time due to the complete pre-assembly.

Specification:

Grid dimensions(L x H x D): 2080 x 1640 x 100mm

Gross surface area: 3.41 m2

Aperture area: 3 m2

Number of evacuated tubes: 18

Glass tube(Φ ext/Φ int/wall thickness/tube length: 47mm/37mm/1.6mm/1500mm

Absorption rate: 64.2%

Max. Working pressure: 10 bar

Max. Stagnation temperature: 272°c

Connection diameter, compression fitting: 15mm

Sensor sleeve: 6mm
