| Flatness: | ~/8@632.8nm |
|---|---|
| Dimension Tolerance: | +0/-0.05mm |
| Surface Quality: | 10/5 |
| Material: | N-BK7 |
| Brand Name: | UNI Optics |
| Angle Tolerance: | +/-1'' |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1. What is cube corner prism?
Cube corner prism has three mutually perpendicular surfaces and a hypotenuse face. It operates on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance/exit surface parallel to itself. this property is independent of direction of the retro-reflector, within acceptance angle limitations. for applications in which either the acceptance angle for TIR is exceeded, or the reflecting surfaces can not be kept sufficiently clean for TIR, a metal or dielectric coating can be applied to the reflecting surfaces.
2. What kinds of materials can UNI Optics use to cube corner prism?
N-BK7 glass, UV Fused silica or other optical glasses.
It's our capability to customize optical componens upon request.
3.Standard manufacturing capability and top limit for right-angle prism.

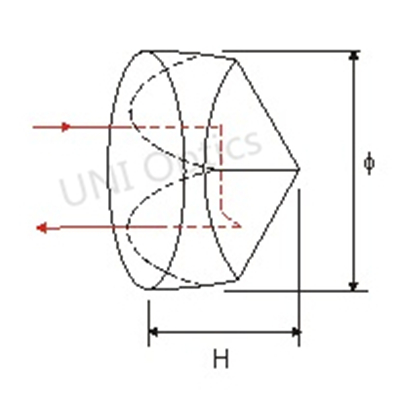

4.What is the typical size?
Cube corner prism has three mutually perpendicular surfaces and a hypotenuse face. It operates on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance/exit surface parallel to itself. this property is independent of direction of the retro-reflector, within acceptance angle limitations. for applications in which either the acceptance angle for TIR is exceeded, or the reflecting surfaces can not be kept sufficiently clean for TIR, a metal or dielectric coating can be applied to the reflecting surfaces.
2. What kinds of materials can UNI Optics use to cube corner prism?
N-BK7 glass, UV Fused silica or other optical glasses.
It's our capability to customize optical componens upon request.
3.Standard manufacturing capability and top limit for right-angle prism.
Specifications |
Standard capability |
Top limit |
Dimension Tolerance |
+0/-0.2mm |
+0/-0.05mm |
Clear Aperture |
>80% |
>85% |
Angle Tolerance (180°) |
+/-30'' |
+/-1'' |
Flatness |
Λ/4@632.8nm |
Λ/8@632.8nm |
Surface quality |
60-40 |
10-5 |
4.What is the typical size?
Diameter(mm) |
Height(mm) |
Deviation( 180°) |
Φ4 |
3.0 |
3"-10" |
Φ8 |
8.0 |
3"-10" |
Φ10 |
7.5 |
3"-10" |
Φ12.7 |
10.2 |
3"-10" |
Φ15.0 |
11.4 |
3"-10" |
Φ25.4 |
19.1 |
3"-10" |
Φ38.1 |
29.2 |
3"-10" |
Φ42 |
34.9 |
3"-10" |
Φ50 |
37.5 |
3"-10" |
Φ50.8 |
38.1 |
3"-10" |
Φ62.23 |
47.9 |
3"-10" |
Φ62.5 |
48.0 |
3"-10" |
Φ64 |
48.0 |
3"-10" |
Φ65 |
39.1 |
3"-10" |
Φ70 |
50.0 |
3"-10" |
Φ72.52 |
52.3 |
3"-10" |
