Quick Details

After-sales Service Provided:	No overseas service provided
Warranty:	11 year
Certification:	CE/ISO9001
Brand Name:	SHIBO
Condition:	New
Weight:	About 4T
Dimension(L*W*H):	6500mm*1600mm*1200mm
Voltage:	380V 50Hz 3phases
Power(W):	4 kw +4kw
Place of Origin:	China (Mainland)
Production Capacity:	8-12 m/min
Use:	Roof
Tile Type:	Glazed Steel
Type:	Tile Forming Machine
Usage:	roof and wall
Material:	Glavanized Sheet
Core Components:	Motor, PLC

Specifications

Product Description

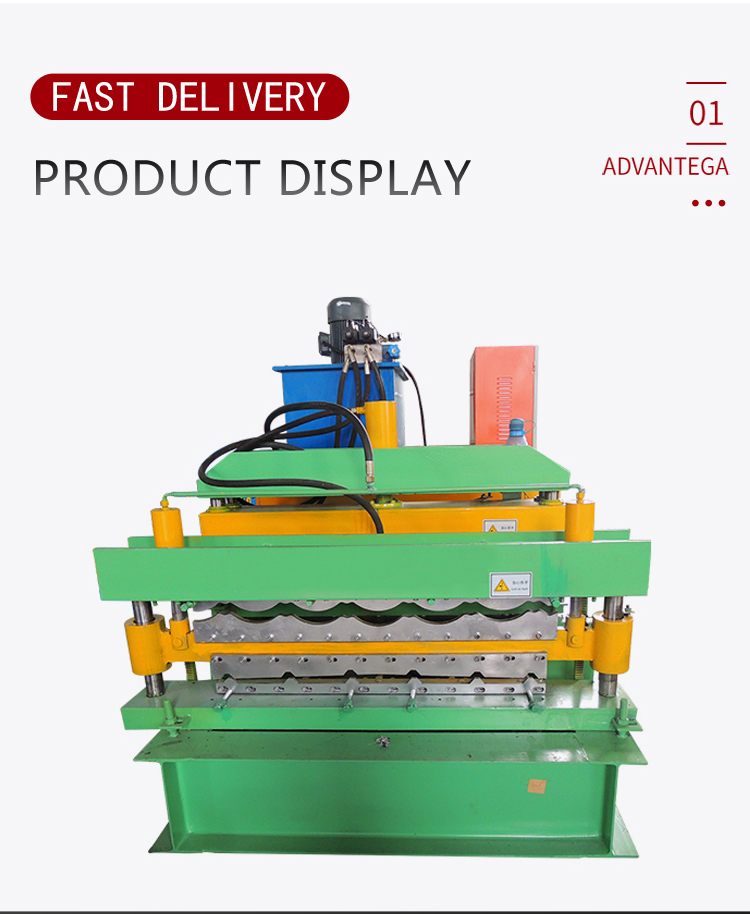

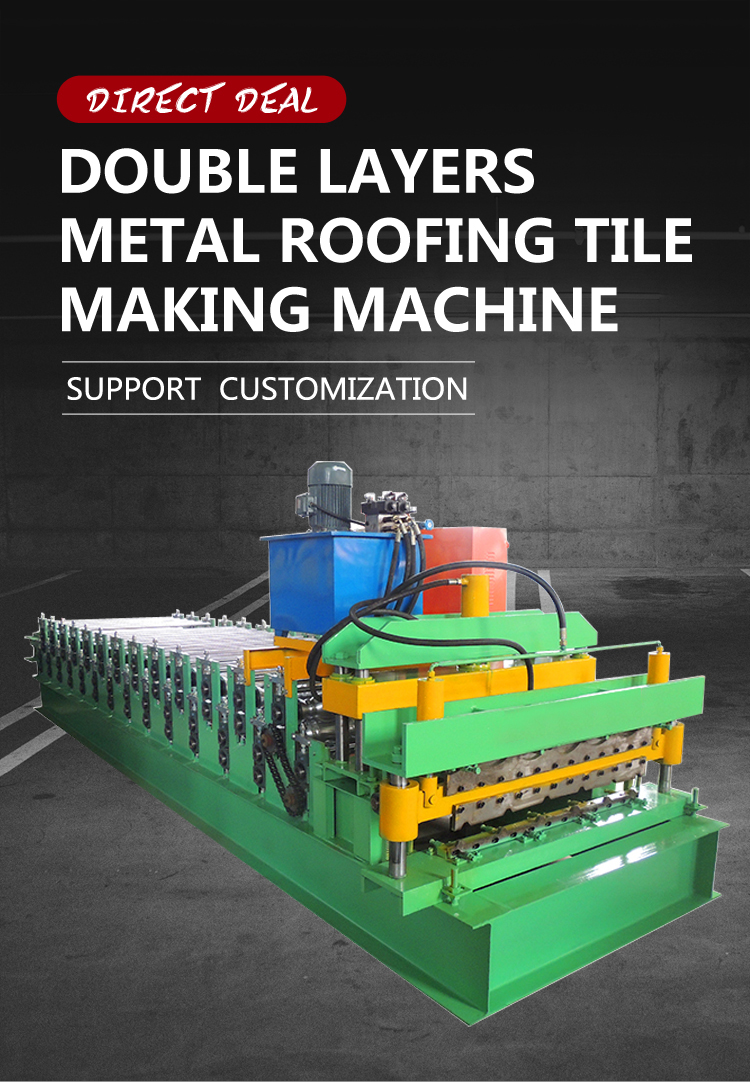

DOUBLE LAYER ROLL FORMING MACHINE
Feeding material	PPGI
Feeding width	1200mm
Thickness of the plate	0.65mm

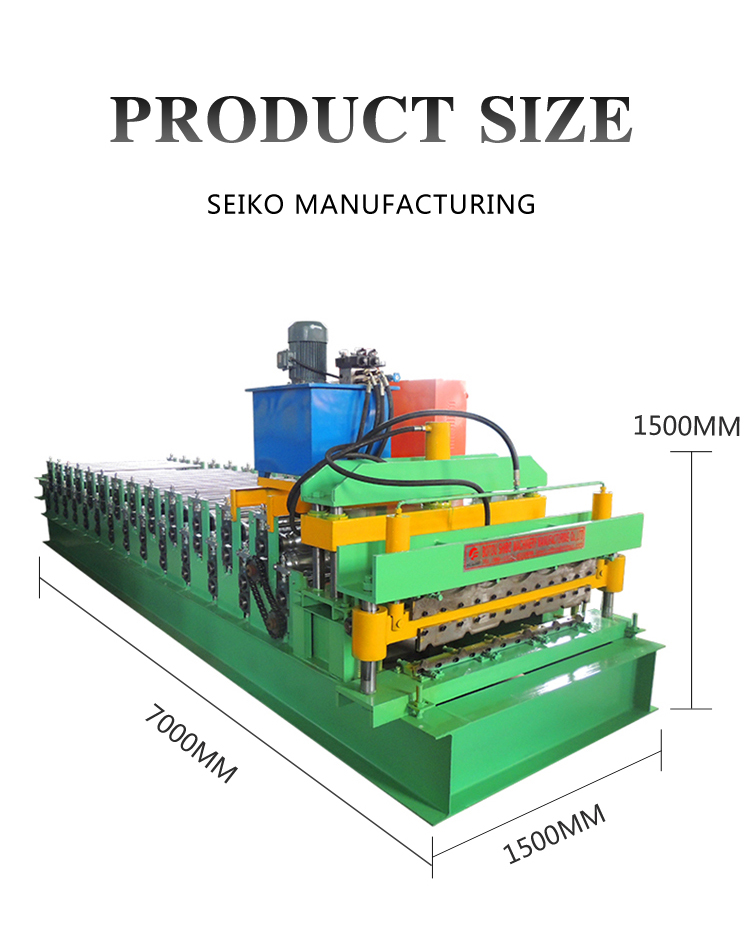

Machine size	about 6500mmX1600mmX1200mm
Diameter of the axle	Φ75mm
Rolling material	Forging Steel 45#
Rolling galvanization thickness	0.05 mm

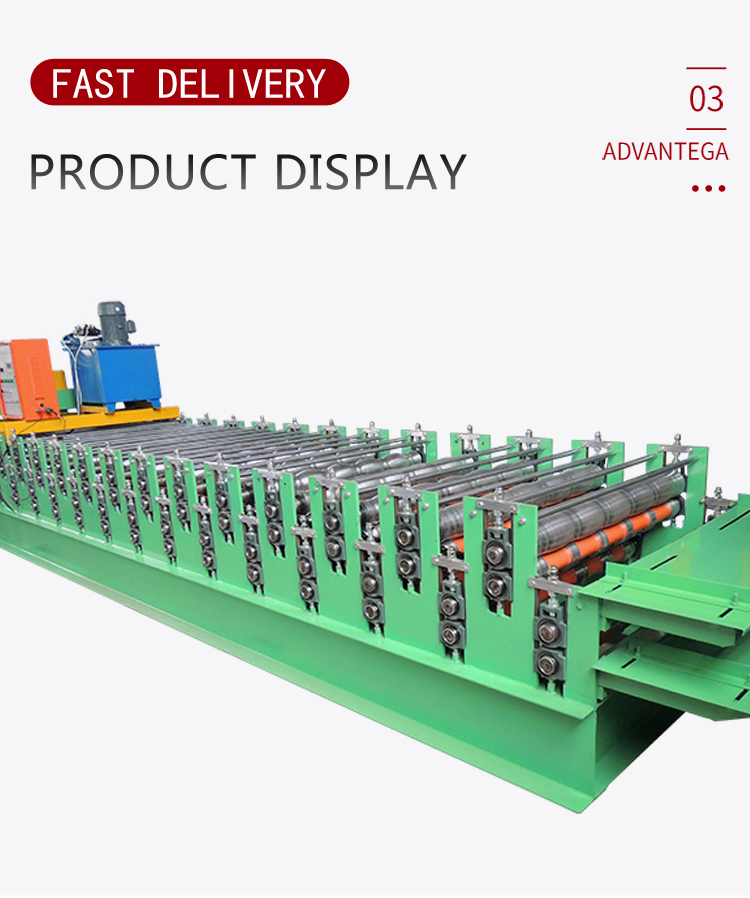

Rolling stages	13-15stages
Productivity	up layer 0-4 m/min down layer 0-15 m/min
Total power	4 kw +4kw
Voltage	220V 60Hz 3phase or as requirement
Weight	about 4T
Base frame	300H steel
Side board thickness	14mm
Cutting blade	Cr12 with heat treatment

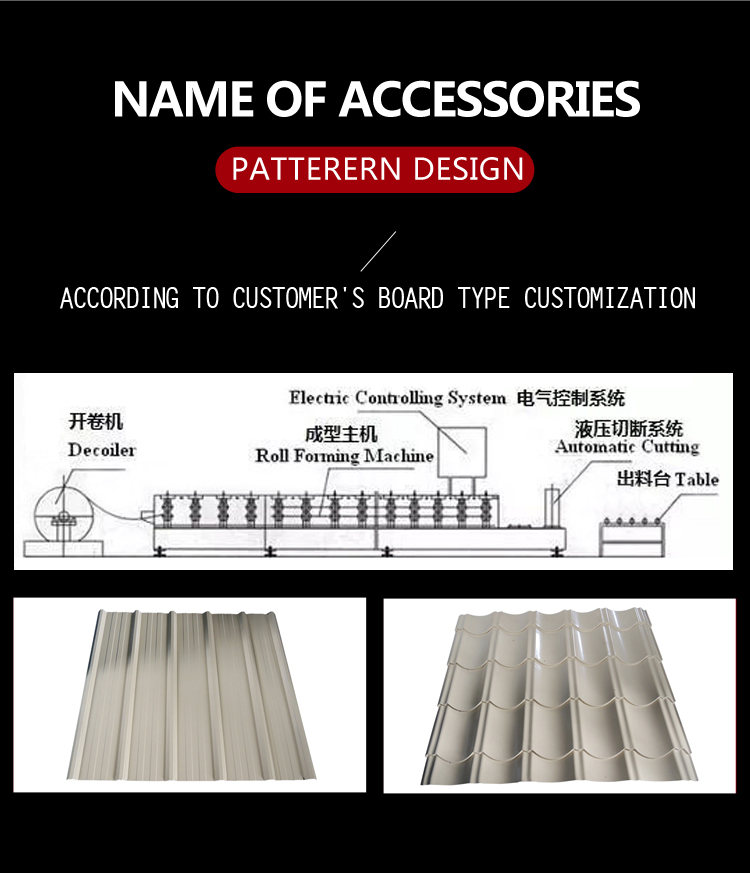

Cutting system	Hydraulic cutting system after forming

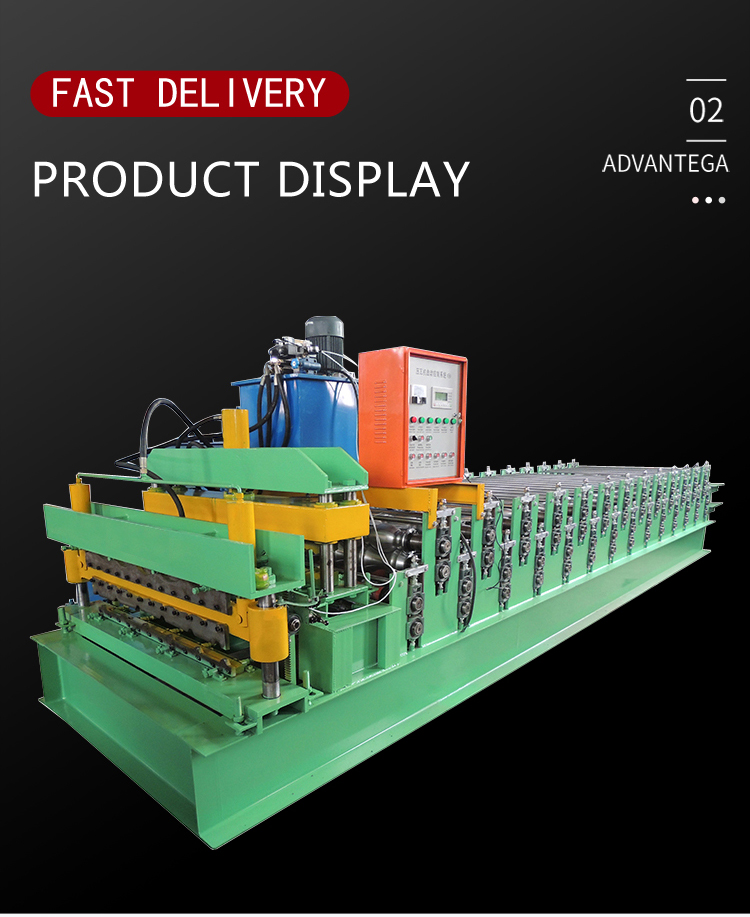

Control cabinet	PLC and frequency changer in it
