| Brand Name: | RENKE |
|---|---|
| color: | white |
| Theory: | inductance sensor |
| Resolution: | 1ppm |
| Size: | 17*17*10 |
| Model Number: | RS-O3-*-2 |
| Place of Origin: | China (Mainland) |

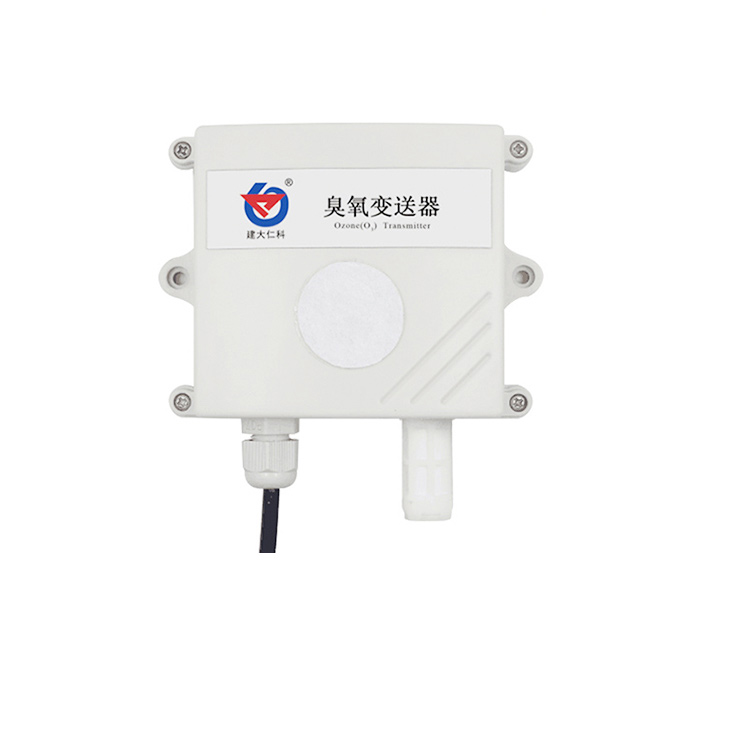

| Product name: | rs485 O3 gas sensor/ozone gas sensor |
| Keywords: | ozone gas sensor |
| Warranty: | 2 Years |
| Certificate: | CE RoHS FCC ISO |
| Power supply: | DC 10~30V |
| Temperature measurement range: | -40~+80 |
| Humidity measurement range: | 0 ~100%RH |
| Operating temperature: | -20~+50 |
| Data and new time: | 1s |
| Output signal: | 4~20mA/0~5V/0~10V/RS485 |
Quick Details
Specifications
Product Description
Product description
Our ozone sensor uses electrochemical technology to measure O3 concentration, and the response is rapid and sensitive. the transmitter is widely used in air quality testing, smart home and other occasions where O3 testing is required. Analog signal output, 4-20mA, 0-10V, 0-5V optional. The equipment is 10-30V wide-voltage power supply, and the enclosure has a high degree of protection, which can adapt to various harsh conditions on site.
