Product Main

Quick Details

After-sales Service Provided:	No overseas service provided
Warranty:	1 year
Certification:	ce,iso
Brand Name:	SHIBO
Condition:	New
Weight:	4T
Dimension(L*W*H):	6500*1300*1500mm
Voltage:	380v/50hz
Power(W):	4kw machine motor +4 kw pump station motor
Place of Origin:	China (Mainland)
Production Capacity:	8-12 m/min
Use:	Roof
Tile Type:	Colored Steel
Type:	Tile Forming Machine
Feeding width:	1200mm
Core Components:	Motor, PLC
Shaft material:	High Grade No.45 Forged

Specifications

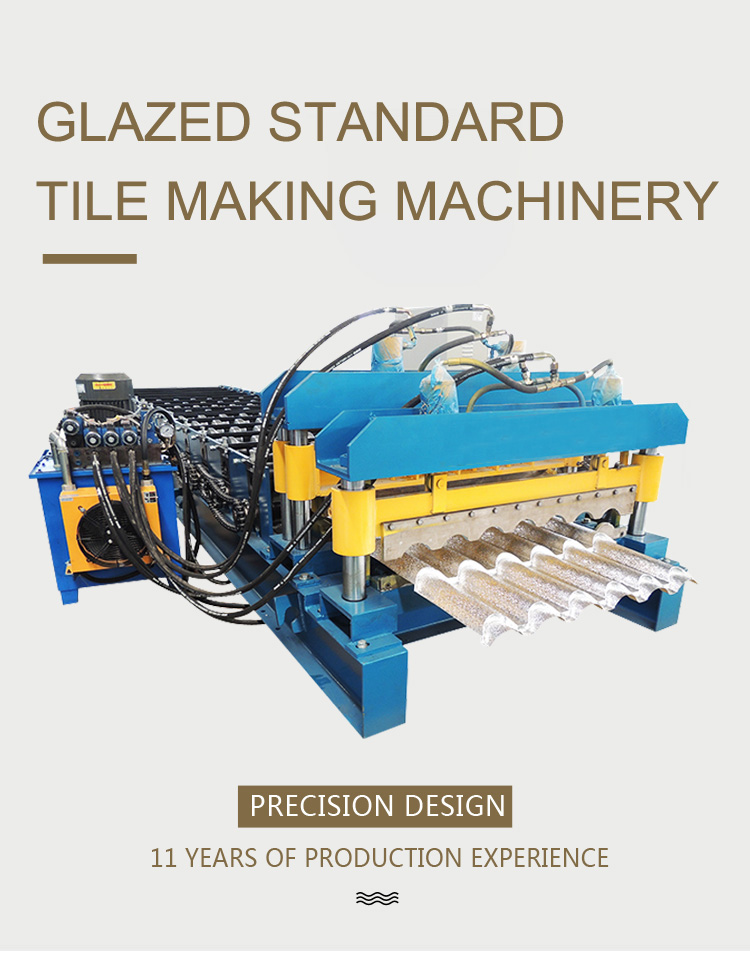

High Quality Steel Corrugated Iron Roof Sheets Tile Making Machine

Product Description

High Quality Steel Corrugated Iron Roof Sheets Tile Making Machine
Feeding material	PPGI
Thickness of the plate	0.3-0.8mm
Coil width	914/1000/1200/1220/1250mm
Machine size	about 7000mmX1600mmX1000mm
Diameter of the axle	Φ70/Φ75mm
Rolling stages	15-18 stages
Productivity	8-12m/min
Total power	4kw machine motor +4 kw pump station motor
Voltage	220V 60Hz 3phase or as requirement
Weight	about 4.5T
Base frame	300H steel
Side board thickness	16mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Control cabinet	PLC and frequency changer in it
