| Size: | D355xID152.4*T15 |
|---|---|
| Type: | Abrasive Block |
| Brand Name: | MORE |
| Material: | Diamond |
| Grit: | #80/100 |
| Model Number: | 1A1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

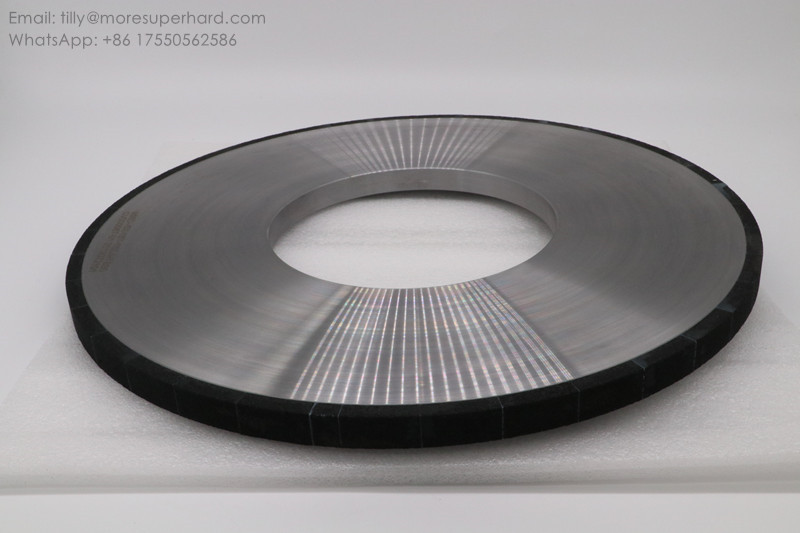

Camshaft Grinding - Vitrified bonded
Vitrified bond CBN Grinding Wheel is
Suitable for grinding the cam lobes of automobile camshafts.the wheel speed is
80m/s-160m/s, designed to used on CNC Cam Grinders like Toyoda, Schaudt,
Landis, Junker etc.
the main parts of the camshaft to grind and regrind, include
Camshaft main journals
Cam (fixed on shaft)
Cams (single)
Camshaft tube
Applicable Machines of Vit CBN Grinding Wheel for Camshaft
Grinding LANDIS: LT1, LT2
SCHAUDT: CF41, CF61, ZEUSMX, ZX
NAXOS: NAXOS-UNION, P310*1250, Gf70
JUNKER: JUCAM5002/10, JUCAM500,
JUCRANK5000,6000
TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63,
GCH63B, GL63M-T
* Vit CBN Grinding Wheel for Camshaft Grinding
Model / Size |
D355xID152.4*T15 Vit CBN Grinding Wheel for Camshaft |
Grain Size |
#80/100 |
Camshaft Grinding Machine |
PAlAMRY |
Grinding Machine Speed |
2500 r.p.m. |
Workpiece Hardness |
HRC 55-60 |
Wheel speed (m/s) |
50m/s |
Camshaft Speed |
0~30 r.p.m. |
Grinding allowance |
0.5mm-1mm |
Cooling Liquid |
Oil-water mixture |
* Double Ends Vit CBN Wheel for Camshaft Grinding
Model/ Size |
120*15*66*(21+17) Double ends vitrified bond CBN grinding wheel | |
Grinding Machine |
Applicable Grinding Machine |
Toyoda (JKT) |
Workpiece |
Workpiece |
Cam lobes of camshaft |
Workpiece Material |
GCr15 | |
Hardness of grinding layer |
HRC58-62 | |
Grinding allowance |
Diameter: 1.2mm | |
Grinding Parameter |
Wheel speed (m/s) |
72m/s |
Roughness after grinding |
Ra≤0.64 | |
Grinding time |
66" | |
Dressing Parameter |
Dressing Tool |
Sintering diamond roller |
Cooling Liquid |
|
Oil cooling |
Grinding Wheel Life |
|
Grind about 8750 pieces |
