1.Brief Introduction:

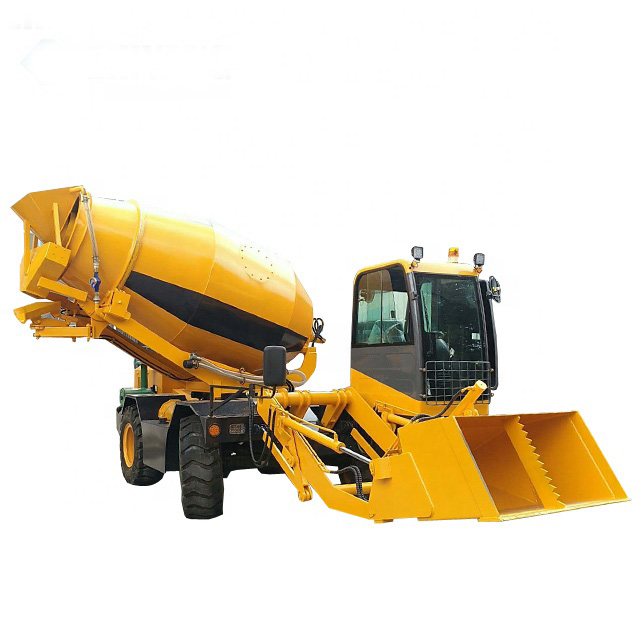

Self Loading Concrete Mixer Truck combines the function of concrete mixer and concrete mixer truck.

with accurate loader weighing system and 270° rotating discharging function, the self loading concrete mixer provides high quality concrete and is convenient and cost-effective to use;

with good quality chassis frame structure, self loading concrete mixer is suitable for all kinds of working conditions. No matter in narrow city road or rugged mountain road, the machine can drive freely.





2.Techincal parameters:

Drum capacity: 6.1cbm

Real concrete yield per batch: 4cbm

Productivity: 16-20cbm per hour

Transmission: Hydraulic, 4 wheel driver,2 wheel steering

Tyre size: 16/70-20

Engine: 110kw Yuchai engine, or Weichai / Cummins

Discharge method: 270°discharging concrete

Frame structure: Whole frame or articulated frame

Weight:7600kg

Overall dimension(L*W*H):7.82.53.2m

Container required: 1*40HQ





3.Performance features:

1. Forward rotating the drum tank starts to mix concrete, reverse rotating tank starts to discharge;

2. the drum tank of 4cbm self-loading concrete mixers can 270 degree horizontal rotate to discharge concrete;

3. 4*4 four wheel drive, Hydraulic torque converter transmission with open gear oil pump, the self loading concrete mixer truck has high and low speed in order to operate easily. Highest speed can reach 25km/h;

4. High quality 16/70-20 Engineering tires of mobile 4m3 self loading mixer car, suitable for any working condition;

5. Supply water by hydraulic system,equip with two tank with a total capacity of 2*350L;

6. Closed cab with tilting front window. Anatomic seat with flexible suspension and height adjustment. the cab of 4cbm mobile self-loading concrete mixer truck can be designed to the left or right of the drum tank according to your drive habit;

7. Accurate loader weighing system is equipped for aggregate and cement weighing, it can meet precise concrete formulation requirements;

8. Water flowmeter is used for water flow control, ensures the good quality of concrete;

9. the mobile self loading concrete mixer 4cbm is equipped with reverse image, convenient for driver operation.
