| Output: | Switching Transducer |
|---|---|
| Theory: | Optical Sensor |
| Usage: | Level Sensor |
| Brand Name: | comus |
| material: | PP Plastic |
| Model Number: | CFS-1040P |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
PRODUCT SPECIFICATION:

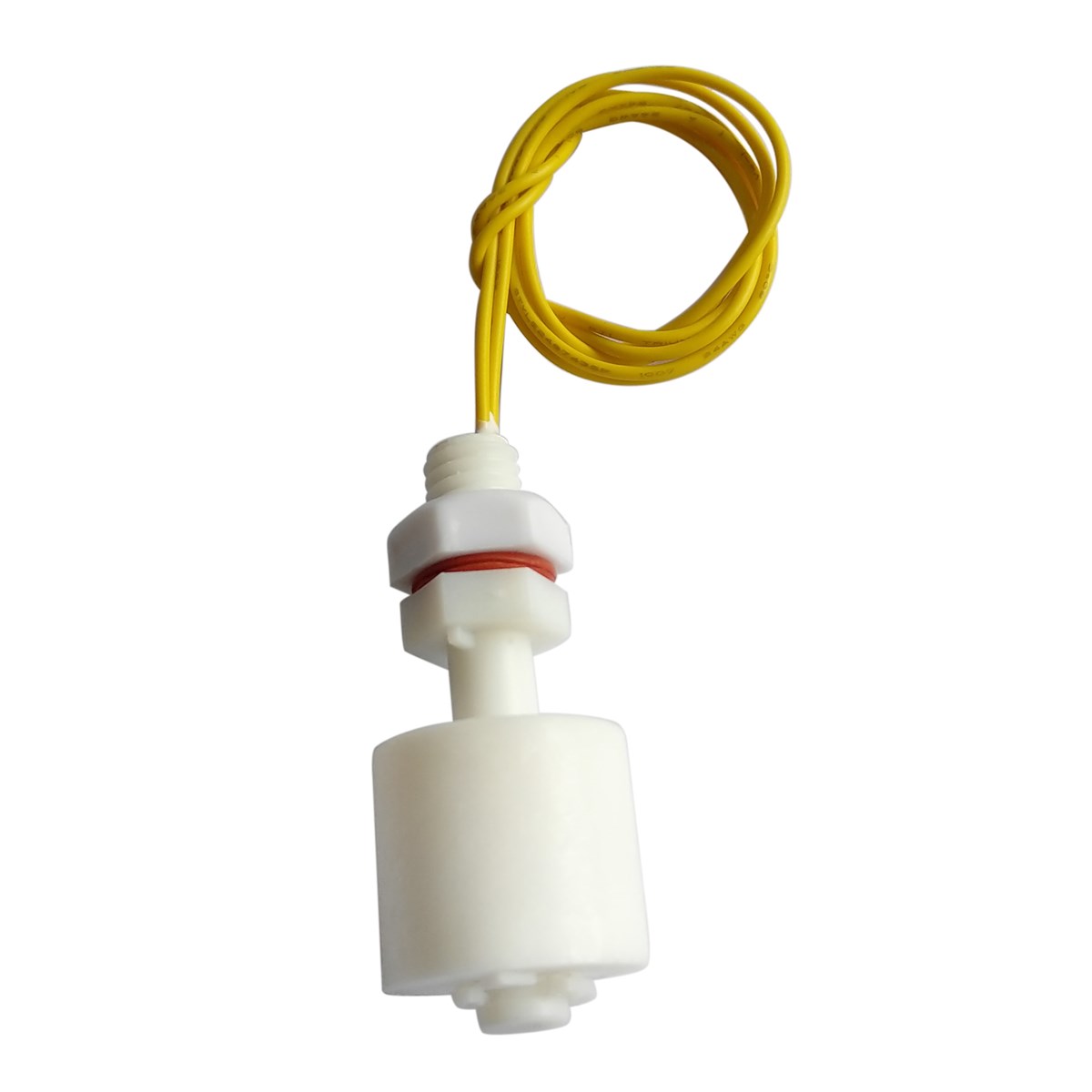

Item Name: Water level sensor float switch
Color: white
Cable Length: 350mm / 13.78''
Switch Body Size: OD19 x 16.6mm
Thread Dia (Approx): M8*1.25Max Contact Rating: 10W
Float Body Material: PP
Float Ball Material: PP
Working Voltage: AC 110V-220V
Working Temperature: -10℃~+85℃
Max Temperature: 85℃
Working Pressure: 0.4Mpa
Max Pressure: 0.4Mpa
Max Switching Current: 0.5A
Max Breakdown Voltage: 220VDC
Max Carry Current: 1.0A
Max Contact Resistance: 100mOhm
Max Carry Cu
Rent: 1.0A
