Brand Name: | Golden Hoop |
---|---|
material: | Steel |
Condition: | New |
Warranty: | One year |
Color: | Red |
Model Number: | YWZ10 |
Quick Details
Specifications

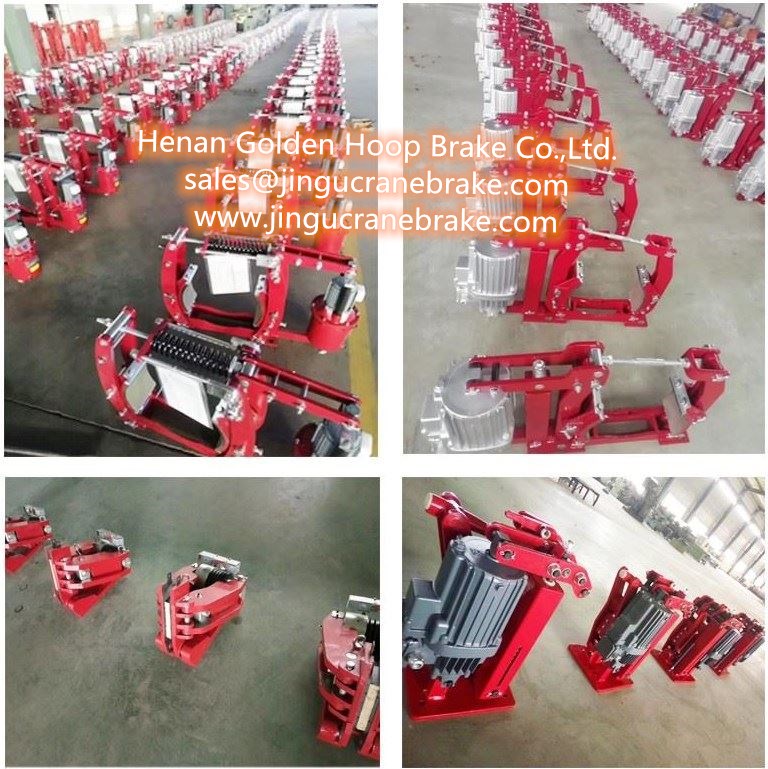

YWZ10 Series Electric Hydraulic Drum Brakes
Product introduction:
YWZ10 electric hydraulic drum brakes are widely used in the deceleration or parking brake of mechanical driving devices such as lifting, metallurgy, mining, ports, docks, construction machinery, etc.
Standards compliant:
the installation dimensions of YWZ10 series electro-hydraulic block brakes conform to the GB6333-86 standard, and the technical requirements conform to the JB6406-2006 standard.
Model | Braking torque | Brake clearance | A | b | C | D | d | E | F | G1 | G2 | H | Hmax | h1 | i | K | n | Weight(kg) | |
Brake type | Adapted Thruster type | ||||||||||||||||||
YWZ10-200/E23 | Ed23/5 | 80-130 | 1 | 445 | 80 | 160 | 200 | 14 | 210 | 100 | 230 | 230 | 415 | 450 | 160 | 55 | 145 | 12 | 55 |
YWZ10-200/E30 | Ed30/5 | 80-200 | 445 | 480 | 59 | ||||||||||||||
YWZ10-250/E23 | Ed23/5 | 100-170 | 1 | 550 | 100 | 160 | 250 | 18 | 260 | 120 | 260 | 260 | 495 | 530 | 190 | 65 | 180 | 14 | 69 |
YWZ10-250/E30 | Ed30/5 | 100-240 | 72 | ||||||||||||||||
YWZ10-250/E50 | Ed50/6 | 220-500 | 190 | 515 | 555 | 73 | |||||||||||||
YWZ10-315/E30 | Ed30/5 | 230-280 | 1.2 | 600 | 125 | 160 | 315 | 18 | 350 | 130 | 320 | 320 | 555 | 595 | 225 | 80 | 220 | 16 | 105 |
YWZ10-315/E50 | Ed50/6 | 430-550 | 190 | 600 | 108 | ||||||||||||||
YWZ10-315/E80 | Ed80/6 | 430-1050 | 110 | ||||||||||||||||
YWZ10-400/E50 | Ed50/6 | 510-650 | 1.3 | 710 | 160 | 190 | 400 | 22 | 375 | 160 | 375 | 375 | 675 | 675 | 280 | 100 | 270 | 18 | 175 |
YWZ10-400/E80 | Ed80/6 | 510-1100 | 180 | ||||||||||||||||
YWZ10-400/E121 | Ed121/6 | 820-1800 | 240 | 758 | 800 | 197 | |||||||||||||
YWZ10-500/E80 | Ed80/6 | 970-1200 | 1.5 | 760 | 200 | 190 | 500 | 22 | 440 | 190 | 440 | 440 | 790 | 790 | 335 | 130 | 325 | 20 | 200 |
YWZ10-500/E121 | Ed121/6 | 970-2000 | 770 | 815 | 213 | ||||||||||||||
YWZ10-500/E201 | Ed201/6 | 1500-3200 | 240 | 213 | |||||||||||||||
YWZ10-630/E121 | Ed121/6 | 1200-2100 | 1.7 | 830 | 250 | 240 | 630 | 27 | 560 | 240 | 540 | 540 | 970 | 1015 | 425 | 170 | 400 | 28 | 434 |
YWZ10-630/E201 | Ed201/6 | 2000-3600 | 434 | ||||||||||||||||
YWZ10-630/E301 | Ed301/6 | 2800-5300 | 435 | ||||||||||||||||
YWZ10-630/E301/12 | Ed301/12 | 3500-7000 | 2 | 950 | 1045 | 444 | |||||||||||||
YWZ10-710/E201 | Ed201/6 | 2300-4000 | 18 | 915 | 280 | 240 | 710 | 27 | 650 | 260 | 610 | 610 | 1060 | 1105 | 475 | 190 | 450 | 28 | 624 |
YWZ10-710/E301 | Ed301/6 | 3100-6000 | 624 | ||||||||||||||||
YWZ10-710/E301/12 | Ed301/12 | 4000-8000 | 2 | 1070 | 1135 | 684 | |||||||||||||
YWZ10-800/E301/12 | Ed301/12 | 5300-9000 | 2 | 1130 | 320 | 240 | 800 | 27 | 700 | 300 | 680 | 680 | 1300 | 1300 | 530 | 210 | 520 | 28 | 700 |
FAQ:
1. Q: What is your MOQ?
A: Thank you for your question. We can accept sample orders as trial orders.
2. Q: Is there a warranty?
A: All our brand products enjoy a 12-month warranty. We provide after-sales service and technical support. If you find any problems during the installation process, please feel free to contact us.
3. Q: Can you customize it according to my needs?
A: You can ask me your needs, we can customize it together with technical engineers.
4. Q: Is the product 100% stock assembled well?
A: Yes, all products have been 100% assembled.
