| Brand Name: | Tanghai |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |

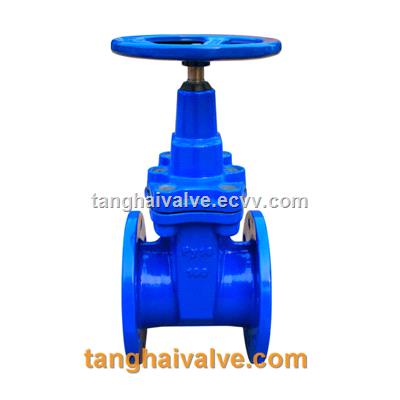

| Model Number: | TH-GTV |
| Place of Origin: | China (Mainland) |
| Media: | Water |
| Power: | Manual |
| Structure: | Gate |
Quick Details
Specifications
Area of application
Marine industry, Water supply & drainage, fire fighting, shipbuilding, water treatment, power stations, energy, food, chemical, and other systems
Data sheet of Gate valve:
| TYPE: | Wafer, double flange |
|---|---|
| SIZE & CONNECTIONS: | DN50 to D600 |
| MEDIUM: | Waste water, Water, Seawater, Air, Inert Gas, Oil. |
| MATERIALS: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless Steel / Alu Bronze |
| PRESSURE RATING: | PN10, PN16 |
| TEMPERATURE: | -30°C to 200°C |
| SEAT/LINING: | Replaceable Liner / Bonded Liner NBR/EPDM/VITON |
| CERTIFICATES & APPROVALS: | DNV-GL, Lloyds, DNV, ABS, BV Type Approval 3.1 & 3.2 Cert (on request) |
Standards
- Design and Manufacture Conform to API 594, BS5150, EN1171
- Dimensions Conform to EN1092-2,ANSI B16.5
- Face to Face dimensions Conform to EN558-1, API 594, DIN3202
- Testing Conform to EN12266-1, API598
