| Brand Name: | XCMG |
|---|---|
| Type: | Single Drum Roller |
| Condition: | New |
| Year: | 2020 |
| Make: | 2020 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO CCC |
| Weight: | 18000kgs |
| Dimension(L*W*H): | 6220x 2390x 3200mm |
| Power(W): | 115kw |
| Model Number: | XS183J |
| Place of Origin: | China (Mainland) |
| Grade Ability: | 35% |
| Travel Speed: | 0-12 km/h |
| Static Linear Pressure: | 422 N/m |
Quick Details
Specifications

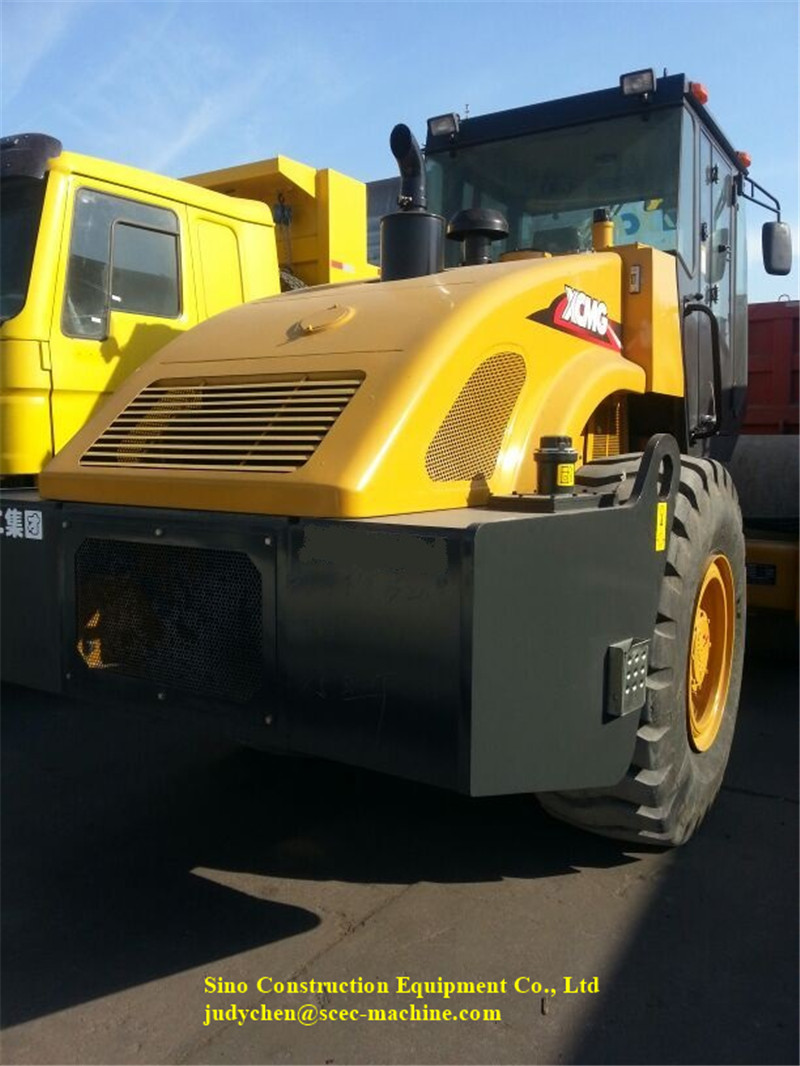

XCMG Mechanical Single Drum Vibratory Road Roller Model XS183J Operating Weight 18t 118KW Engine
Introduction of XCMG XS183J Single Drum Vibratory Road Roller
XCMG XS183J is the most popular model of China 18t vibratory compactor,is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Quick look of XCMG XS183J Single Drum Vibratory Road Roller
Operating weight (kg): 18000
Engine brand: Shangchai
Engine rated power/speed(kW/rpm): 118/1800
Technical specification of XCMG XS183J Single Drum Vibratory Road Roller
Mass load parameters | |
Working weight with cab (kg) |
18000 |
Front drum distribution weight (kg) |
9000 |
Rear wheel distribution weight (kg) |
9000 |
Static front line load (N / cm) |
422 |
Operating weight (kg) |
11-15t |
Compaction mechanism parameters | |
Vibration frequency (Hz) |
28 |
Nominal amplitude (mm) |
1.9/0.95 |
Excitation force (kN) |
320/160 |
Maneuverability parameters | |
High-speed driving speed (km / h) |
10.51 |
Low speed driving speed (km / h) |
2.52 |
Theoretical climbing ability under vibration (%) |
30% |
Steering angle |
±33 |
Swing angle (°) |
±11 |
Minimum turning outside radius (mm) |
6500 |
Engine | |
Model |
Shangchai SC8D156.2G2B1 |
Rated power(kw/rpm) |
115/1800 |
Dimension | |
LxWxH(mm) |
6220x 2390x 3200 |
Wheelbase(mm) |
3180 |
Min.Ground clearance(mm ) |
448 |
Advantages of XCMG XS183J Single Drum Vibratory Road Roller
1.Energy-saving and environmental friendly power Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. the maintenance-free battery can be started easily and work smoothly in low temperature.
2.High efficient and reliable vibratory compacting system Single drum structure features good rigidity and intensity. the bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. the left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
