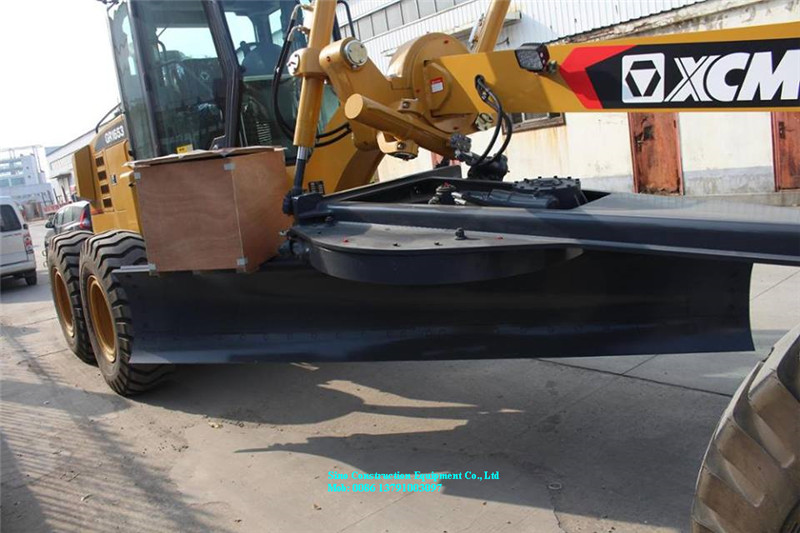

XCMG Operating Weight 7000kg Motor Grader GR100 with Blade3048x450mm Engine 74Kw Euro III



Advantages ofXCMG Operating Weight 7000kg Motor Grader GR100



Using Dongfeng Cummins engine, it has high reliability and fuel economy, low noise and low emissions.

Adopt articulated frame, with front wheel steering, small turning radius and flexible maneuverability.

Electro-hydraulic controlled power shift transmission with 6 forward speeds and 3 reverse speeds.

the use of international supporting hydraulic parts, reliable work.

the blade action is fully hydraulically controlled.

the rear axle is the drive axle and is equipped with a self-locking differential.

Adjustable operating table, seat, joystick and instrumentation are reasonably arranged, easy to use and improve driving comfort.



Technical specification of XCMG Operating Weight 7000kg Motor Grader GR100

Item	Unit	Parameter
Engine manufacturers	-	Cummins
ENgine model	-	4BTA3.9
Rated power / speed	(kW/rpm)	74/2200
Forward speed	(km/h)	5/8/11/17/24/38
Backward speed	(km/h)	5/11/24
Traction force f = 0.75	(kN)	36
Minimum turning radius	(m)	5.9
Blade length X chord height	(mm)	3048x450
Overall dimensions	(mm)	6880x2375x3150
Total Weight	(Standard/kg)	7000
Optional	Three tooth soil ripper



after-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.
