Brand Name: | Qingflex |
---|---|
Color: | Black / Customized |
size: | EN 856 4SP/4SH R9 R12 1/4"~2" |
Material: | oil resistant synthetic rubber |
Reinforcement: | four spiral plies of steel wire |
Model Number: | EN 856 4SP/4SH R9 R12 |
Place of Origin: | China (Mainland) |
LOGO: | Customized |
Certification: | ISO 9001:2015 |
Authentication: | DOT |
Certification Europe: | ROHS REACH |
Quick Details
Specifications

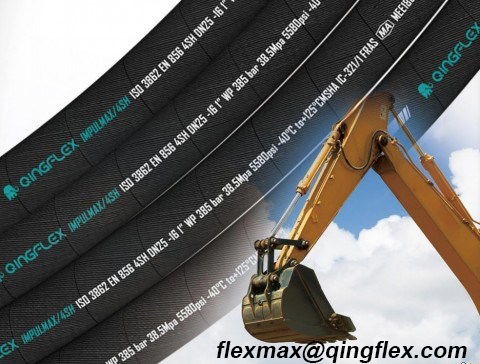

Qingflex Wrapped Cover Steel Wire Spiral Hydraulic Hose
En 856 4sp/4sh R9 R12
EN 856 4SP
Construction: this hose shall consist of an inner tube of oil resistant synthetic rubber, four spiral plies of steel wire wrapped in alternating dirextion and an oil and weather resistant synthetic rubber cover.
Application: this section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40C~+100C.
En 856 4sp/4sh R9 R12
EN 856 4SP
Construction: this hose shall consist of an inner tube of oil resistant synthetic rubber, four spiral plies of steel wire wrapped in alternating dirextion and an oil and weather resistant synthetic rubber cover.
Application: this section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40C~+100C.

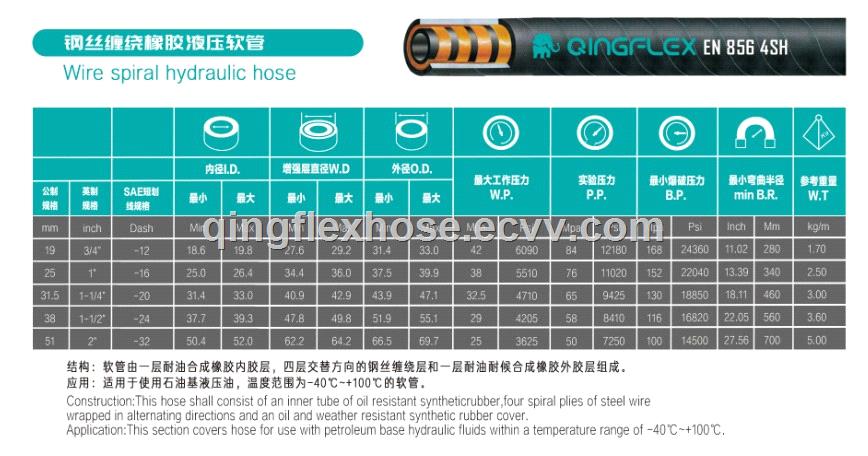

Dash | HOSE I.D | WIRE O.D | HOSE O.D | Working Pressure | Burst Pressure | Min B.R | Weight | Length | |||
inch | mm | mm | mm | Mpa | psi | Mpa | psi | mm | Kg/m | m | |
-4 | 1/4 | 6.2~7.0 | 14.1~15.3 | 17.1~18.7 | 45 | 6525 | 180 | 26100 | 150 | 0.64 | 50/100 |
-6 | 3/8 | 9.3~10.1 | 16.9~18.1 | 20.6~22.2 | 44.5 | 6450 | 178 | 25810 | 180 | 0.75 | 50/100 |
-8 | 1/2 | 12.3~13.5 | 19.4~21.0 | 23.8~25.4 | 41.5 | 6020 | 166 | 24070 | 230 | 0.89 | 50/100 |
-10 | 5/8 | 15.5~16.7 | 23.0~24.6 | 27.4~29.0 | 35 | 5075 | 140 | 20300 | 250 | 1.10 | 50/100 |
-12 | 3/4 | 18.6~19.8 | 27.4~29.0 | 31.4~33.0 | 35 | 5075 | 140 | 21460 | 300 | 1.50 | 60/61 |
-16 | 1 | 25.0~26.4 | 34.5~36.1 | 38.5~40.9 | 28 | 4060 | 112 | 16240 | 340 | 2.00 | 60/61 |
-20 | 1 1/4 | 31.4~33.0 | 45.0~47.0 | 49.2~52.4 | 21 | 3045 | 84 | 12180 | 460 | 3.00 | 60/61 |
-24 | 1 1/2 | 37.7~39.3 | 51.4~53.4 | 55.6~58.8 | 18.5 | 2680 | 74 | 10730 | 560 | 3.40 | 60/61 |
-32 | 2 | 50.4~52.0 | 64.3~66.3 | 68.2~71.4 | 16.5 | 2390 | 66 | 9570 | 660 | 4.35 | 60/61 |
