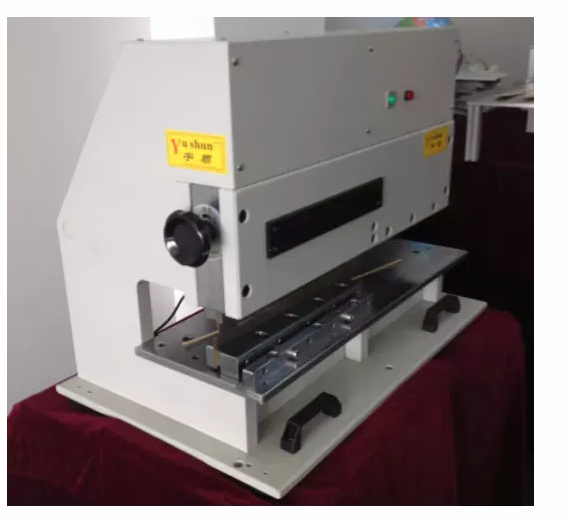

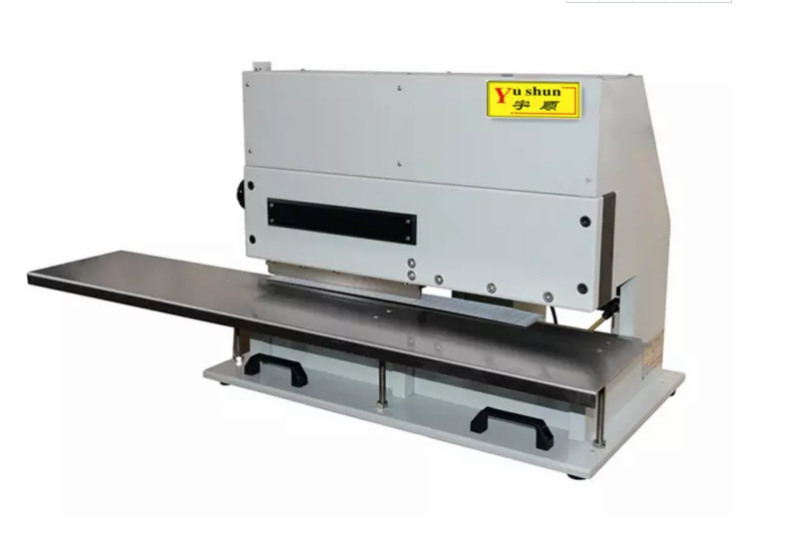

Pneumatic Type PCB Separator with Two Linear Blades and CE Approved



Features

1.  Cut any length MCPCB board, PCB/ FR4 boards,LED alum metal board more  Safety and easily.

2. Separates long boards directly,without turn direction.

3. Separates boards up to 5.0mm thick Metal Board.

4. Shears boards safely with parts as close as 1 mm to the V Score line,including ceramic capacitors.

5. Operator foolproof! Panels cannot be inserted into the Knives except on the score line.

6. Handles high components up to50mm;

7. Bow waves that can occur with round knives are avoided.

8. Easy adjusting of distance between knives

9. the machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.

10. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely
11. Depaneling process without vibrations.
12. PCB depaneling control method is by pneumatic-driven and electromagnetic valve.

13. PCB control operation is that operator stamps the foot pedal to depanel PCB.

14. Highest components near the v groove of PCB can be up to 50mm.

15. Gap for insertion of PCB can be easy to adjust.

YSVC-3 Specifications
Model	YSVC-3
Dimension	780x500x620mm(L*W*H)
Suitable PCB Length	No limited
Blades Length	330mm
Cutting speed	300~500mm/s.
Cutting thickness	0.5-5.0mm
Minimum component distance from v-groove	1mm
Voltage	220 V/50HZ or 110V
Blade material:	SKH-9 HSS
Platform 1.2M	Options
Max component height	70 mm
Working air pressure:	0.5-0.7Mpa;
Machine weight	220 kg
Machine Warranty Period	2 year



PACKAGE PHOTO:
