Single axes Multi-blade PCB CNC Automatic V Groove




Introduction

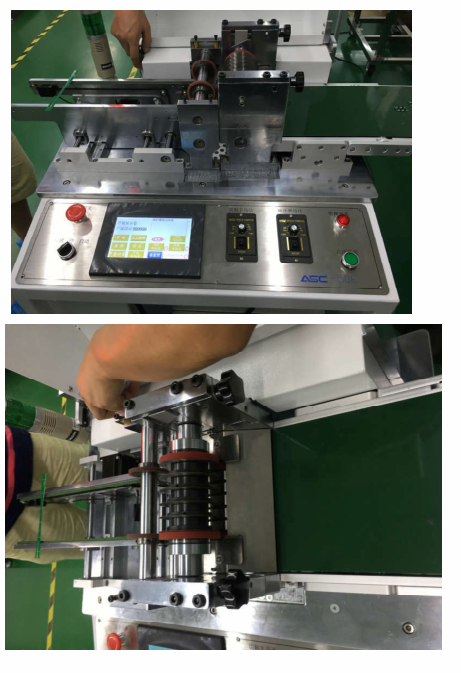

the machine is equipped with standard upper and bottom two axes, 10 groups of blades
Which can separate the 10 lines or more LED light bars at same time.All blades are made
of endurable SKD11 high speed steel.
PCB clamping and conveying system ensure precise separating without deformation and
Burrs.

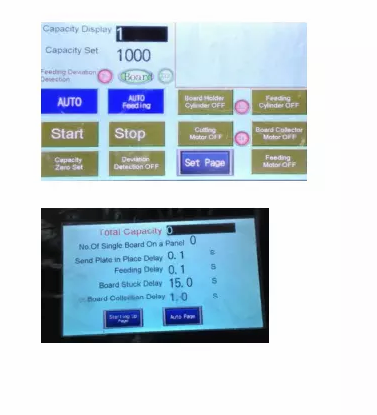

the machine adopts touch screen and PLC control system which can monitor production
Information,easy to operate.
Full english operation interface, easy to operate.

Features:
1. the conveying speed can be adjusted.
2. the single separated PCB width is 8-20 mm. Max cutting width 200 mm;

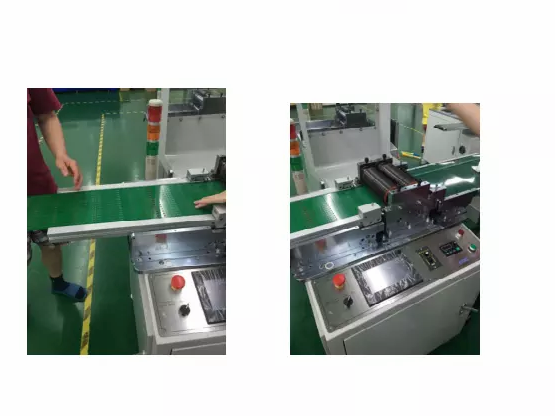

3. Machine with automatic feeding system;
4. Machine is equipped with safety protection device.
5. Suitable cutting material of PCB:aluminum,FR4,glass fiber.
6. Equipped with SMEMA connector,easy to connect with upstream machine
7. the machine adopts the touch screen and PLC which can monitor production information.
8. MDS-900 is equipped with multiple sets of blades which can separate the whole light bar
Board one time.
9. the distance between upper and lower cutter can be precisely adjusted, the separating
Thickness of PCB range is: 0.8MM-3.0MM.



YSVC-450- Specifications

Model	YSVC-450
Total Dimension	L2600*W850*H1050mm
Inlet conveying length	850mm
Outlet conveying length	850mm
Separating blades number	10 groups of upper and lower blades, total:40pcs
PCB Thickness	0.6-5.0mm
Separating PCB bar number at one time	11 LINES
Separting width of single PCB	8-20MM
Max PCB width	200 mm
Max component height	30 mm
Blade material	SKD11
Blade average lifespan	1,000,000 times (1.2m long, 3mm thick PCB)
Voltage	220V/50Hz or 110V
Machine weight	210 kg
Power	200W
