1.Application:

this series of animal carcass sterilizers is designed and Manufactured by our company in order to solve the problems of easily produce Oil pollution at the sterilization process. this series sterilizer is mainly Used in  sterilization of animal carcass ,it can effectively solve the problem of pollution and blockage of the Discharge pipe, and has the function of cleaning.

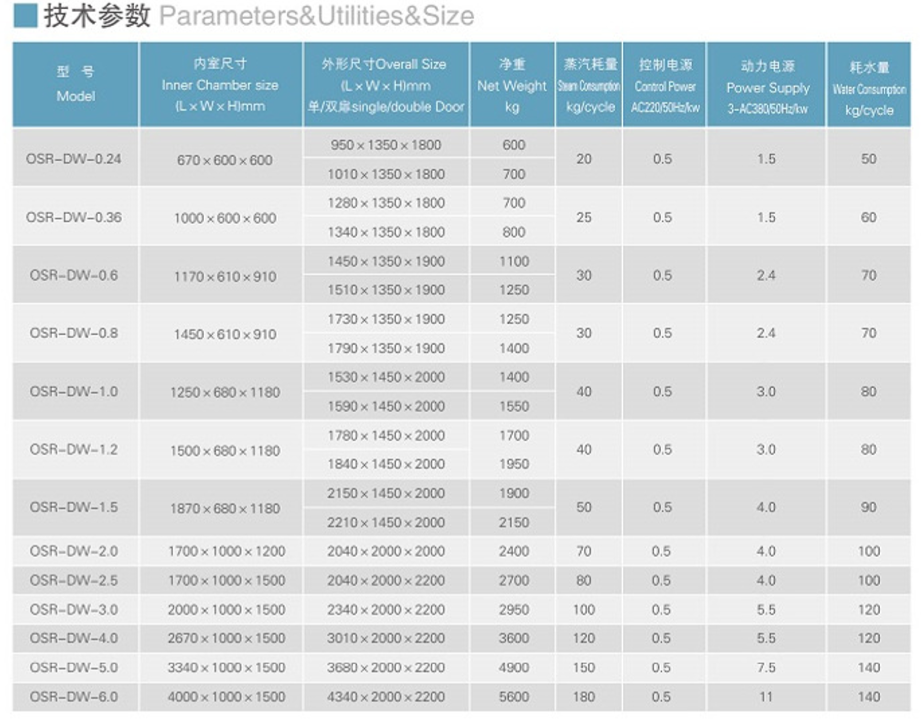

2.Techincal parameters:

Steam pressure:0.3-0.5Mpa	Design pressure:0.25Mpa
Water pressure:0.15-0.3Mpa	Working pressure:0.23Mpa
Compressed air pressure:0.5-0.7Mpa	Working temperature:134℃

3.Main characters:

the main body is Composed of inner layer and outer layer. the inner chamber is made of high Quality acid-proof 304 stainless steel. Automatic welding, once forming. the Jacket is made of Q345R material special for pressure vessel. Stainless steel Wiring-drawing plate for decoration case. There is GMP confirmation access for The users to confirm the equipment.

It adopts motor-driven sealing door. Operation Easily and safely. the sealing strips adopt excellent heat-resistant silicon Rubber with long service life.

the control system adopts touch screen, PLC, Mini-printer to ensure running steadily and inspecting temperature correctly.

Complete functions of recording, printing and Storing. Temperature, time and pressure graph can be printed.

Inner chamber circular arc≥40°.

Inner chamber mirror polishing.
