| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Type: | sterilization equipment |
| Application: | Liquid |
| Brand Name: | OSR |
| Condition: | FOB Shanghai |
| Place of Origin: | China (Mainland) |
| Lead time: | 60 days |
| Raw material: | 304/316L stainless steel |
| Warranty: | one year |
| Certification: | ISO13485; ISO9001; CE |
| Voltage: | 220V/380V |
| Design pressure: | 0.17Mpa |
| Working pressure: | 0.15Mpa |
| HS code: | 8419200000 |
| Inner capacity: | 1.2L-5.0L |
| Package: | wooden box |
Quick Details

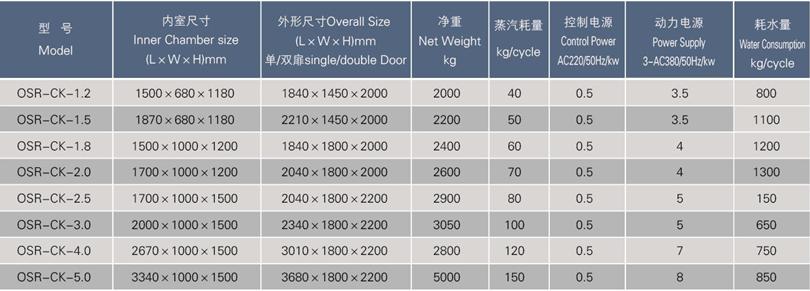

Specifications
1.Application:
the series is mainly used for sterilization, Leakage detection and cleaning of such preparations as ampoule, oral liquid and Injection solution in penicillin bottle. the device conducts leakage detection with vacuum or vacuum plus colorful water, ensuring 100% detection rate of Wastes. At last, it uses clean water to clean sterilized products, ensuring no Pollution in outer wall of the bottle.
2.Techincal parameters: Steam pressure:0.3-0.5Mpa Design
Pressure:0.17Mpa Water pressure:0.2-0.4Mpa Working pressure:0.15Mpa Compressed air pressure:0.5-0.7Mpa Working temperature:126℃
3.Main characters:

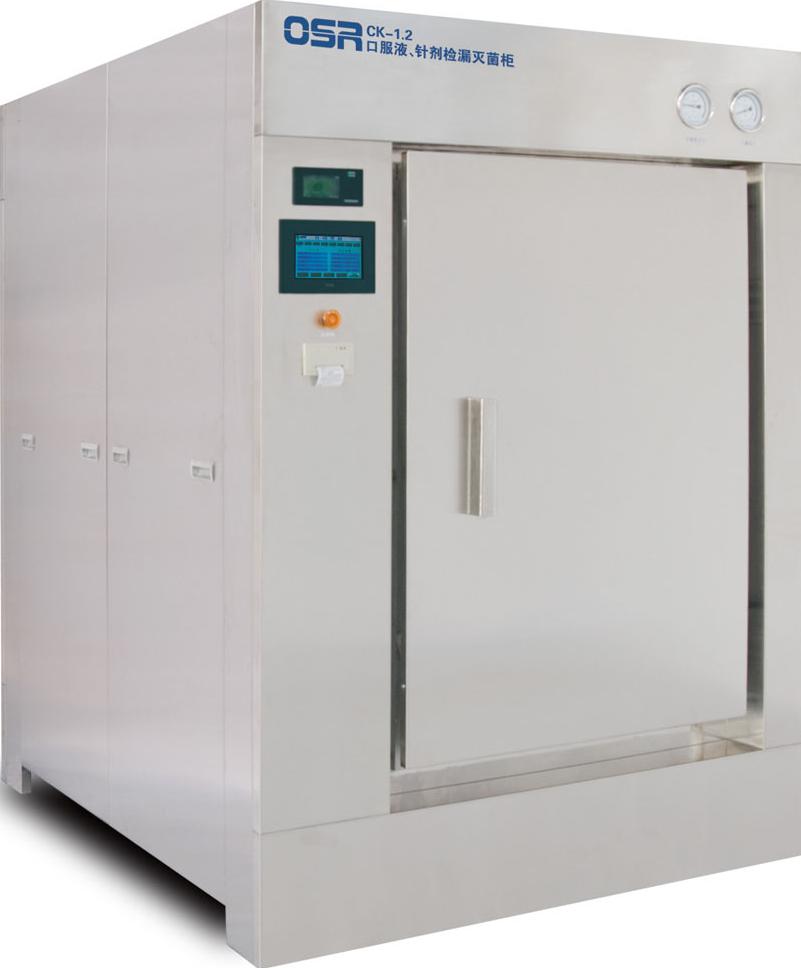

the main body adopts horizontal Rectangle structure. the inner chamber is made of 304 stainless steel. Stainless steel wiring-drawing plate for decoration case.
There is GMP Confirmation access for the users to confirm the equipment at any time.
It adopts Motor-driven sealing door which is operated simply and safety. the sealing Strips adopt excellent heat-resistant silicon rubber with long service life.
It sprays mist by Wide-angle. to ensure no dead angle in cabinet and raise uniformity of Temperature.
It Uses the most excellent accessories in trade, such as GEMU air-operated valve and WILO water pump.
