After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Type: | sterilization equipment |
Application: | Liquid |
Brand Name: | OSR |
Condition: | FOB Shanghai |
Place of Origin: | China (Mainland) |
Capacity: | 0.8L-6.0L |
Raw material: | 304/316L |
Warranty: | one year |
Certification: | ISO13485; ISO9001; CE |
Voltage: | 220V/380V |
Design pressure: | 0.25Mpa |
Working pressure: | 0.23Mpa |
HS code: | 8419200000 |
Package: | wooden box |
Quick Details

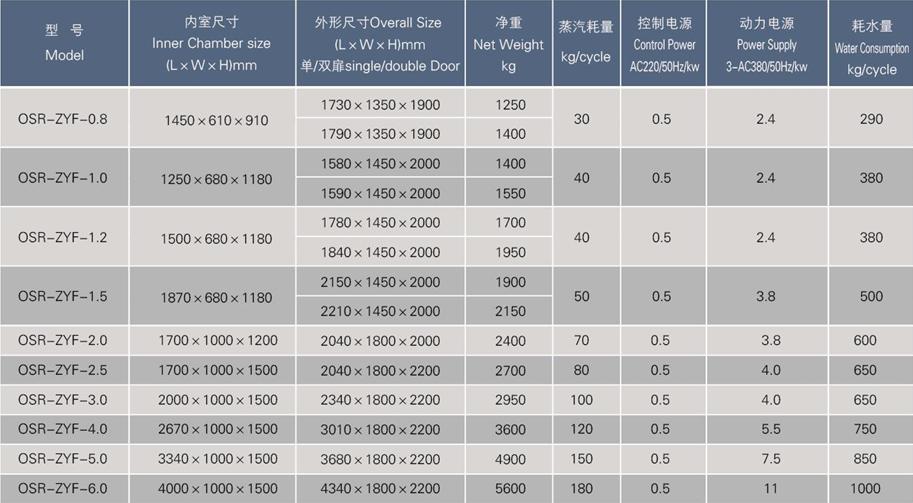

Specifications
1.Application:
this series is used to sterilize Chinese Traditional medicine, corniness, tea, spice and other things like powder. during the whole working process, the jacket is first used to pre-heat the Device, saturated steam is applied as sterilization medium for sterilization, Followed by pre-heating again via the jacket, and finally inner chamber is Dried with vacuum. It adopts special gas admission style to reduce condensate Water. and it prevents Chinese traditional medicine from lumping
2.Techincal parameters: Steam pressure:0.3-0.5Mpa Design pressure:0.25Mpa Water pressure:0.15-0.3Mpa Working pressure:0.23Mpa Compressed air pressure:0.5-0.7Mpa Working temperature:134℃
3.Main characters:
the main body is Composed of inner layer and outer layer. the inner chamber is made of high Quality acid-proof 304 stainless steel. Automatic welding, once forming. the Jacket is made of Q345R material special for pressure vessel. Stainless steel Wiring-drawing plate for decoration case. There is GMP confirmation access for the Users to confirm the equipment.
It adopts Motor-driven sealing door. Operation easily and safely. the sealing strips Adopt excellent heat-resistant silicon rubber with long service life.
It uses aluminum Silicate cotton to moisturize, taking advantages of good heat-insulating Property
Unique condensate Water control skill
