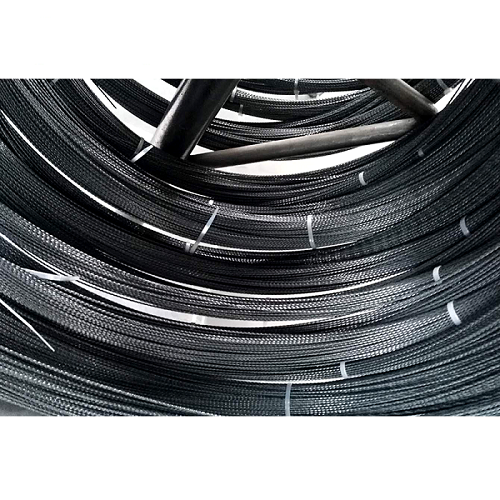

Unit Weight 10-25kg Moly Wire, molybdenum spray wire Diameter 3.2mm Surface Black



Molybdenum wire for spraying is used to surface of auto parts as a thin surface coating which can enhance wear resistance, such as piston rings, gearbox synchromesh parts, selector forks, etc.



Furthermore, molybdenum wire for spraying is applied as an intermediate layer in the case of repairs of machine parts, such as bearing shells and shafts, because of the lacking adhesion of steel layers to steel without intermediate molybdenum layers.



Description of Molybdenum for Spraying:

Materials: pure molybdenum, Mo>99. 95%, impurities <0. 05%, each element content <0. 01%
Appearance: Molybdenum spraying wire is covered with graphite. after removed graphite, it is metallic luster.



Properties of Molybdenum Wire for Spraying:

1. the weight of single wire is up to 10-25kg without any welded joint, which results in enhancing the efficiency and decreasing the operating costs.
2. Diameter: 3.2mm and other customized sizes
3. Tolerance: 3. 175mm + / -0. 025mm or + 0 / -0. 05mm
                 2. 3mm-1. 45mm + / -0. 02mm + 0 / -0. 05mm
4. Tensile strength: >700-900N / mm2
5. Elongation: >20-5%



Applications of Molybdenum Spray Wires:



Molybdenum wire(spray moly wire)is mainly used for auto parts spraying,such as piston ring,synchronizer rings,shift elements,etc.Molybdenum spray wire is also used in repairs of machine parts,such as bearing,bearing shells,shafts,etc



Pure Molybdenum Chemical Composition in %:



Brand	Mo Content	Maximum Content of Impurities
		Total	Al	Si	C/Fe/Ti	Ni/O/Cr	Ca/Mg/Na
HLMo1	≥99.95	0.05	0.002	0.003	0.005	0.003	0.002



State of Finished Molybdenum Wire for Spraying:



Sizesmm	Surface	Reel Weightkg	Packing
Φ3.17	Black	10~25	Self-coiling
Φ2.31	Black	10~25	Self-coiling
Φ1.60	Black	10~25	Self-coiling,or reel
Φ1.45	Black	10~25	Self-coiling,or reel



 Note:Wire with custom-made sizes and surface is also available.
