| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Type: | sterilization equipment |
| Application: | Liquid |
| Brand Name: | OSR |
| Condition: | FOB Shanghai, China |
| Place of Origin: | China (Mainland) |
| Lead time: | 60 days |
| Raw material: | 304/316L stainless steel |
| Warranty: | one year |
| Certification: | ISO13485; ISO9001; CE |
| Voltage: | 220V/380V |
| Design pressure: | 0.17-0.30Mpa |
| Working pressure: | 0.15-0.27Mpa |
| HS code: | 8419200000 |
| Inner capacity: | 0.6L-12L |
| Package: | wooden box |
Quick Details
Specifications
1.Application:
at present, with development of such industries as pharmacy and food, more and more rotary sterilizers.this kind of Sterilization is still based on general sterilization principle (sterilization with saturated steam), but sterilization vehicle continues backward and forward Rotation at an adjustable speed via magnetic drive unit inside of equipment.the Power of rotation is from unique driving device invented by our company.

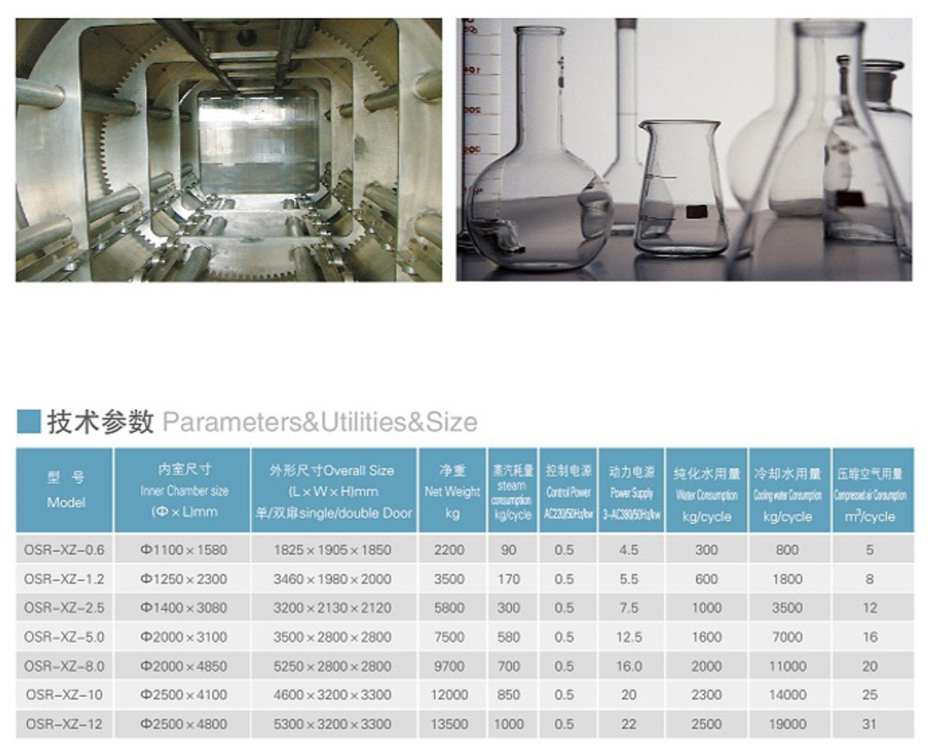

2.Techincal parameters: Steam pressure:0.4-0.6Mpa Design pressure:0.17-0.30Mpa Water pressure:0.2-0.4Mpa Working pressure:0.15-0.27Mpa Compressed air pressure:0.5-0.7Mpa Working temperature:134℃
3.Main characters:
the box is designed, produced and tested strictly according to(Steel Pressure Vessel).
Electrically balance door, flexible and easy to operate.
the unique design of embedded dove-tail shape with heat resisting Silicone rubber ensures the seal tightness of the door.
the main control system adopts micro-computer PLC and touch screen and DCS long distance tiring room monitoring system.
Stainless steel wiring-drawing plate for decoration case.
Standard GMP certification joint.
Stepless variable - frequency speed control.
the pressure of design and running is selected according to Characters of articles sterilized.
