| Purity: | NO |
|---|---|
| Brand Name: | SX |
| Type: | Synthetic Resin and Plastics |
| Other Names: | cation exchange resin |
| CAS No.: | 69011-20-7 |
| Model Number: | SA-2 |
| Place of Origin: | China (Mainland) |
| Colour: | Brown |
Quick Details
Specifications
1. Description

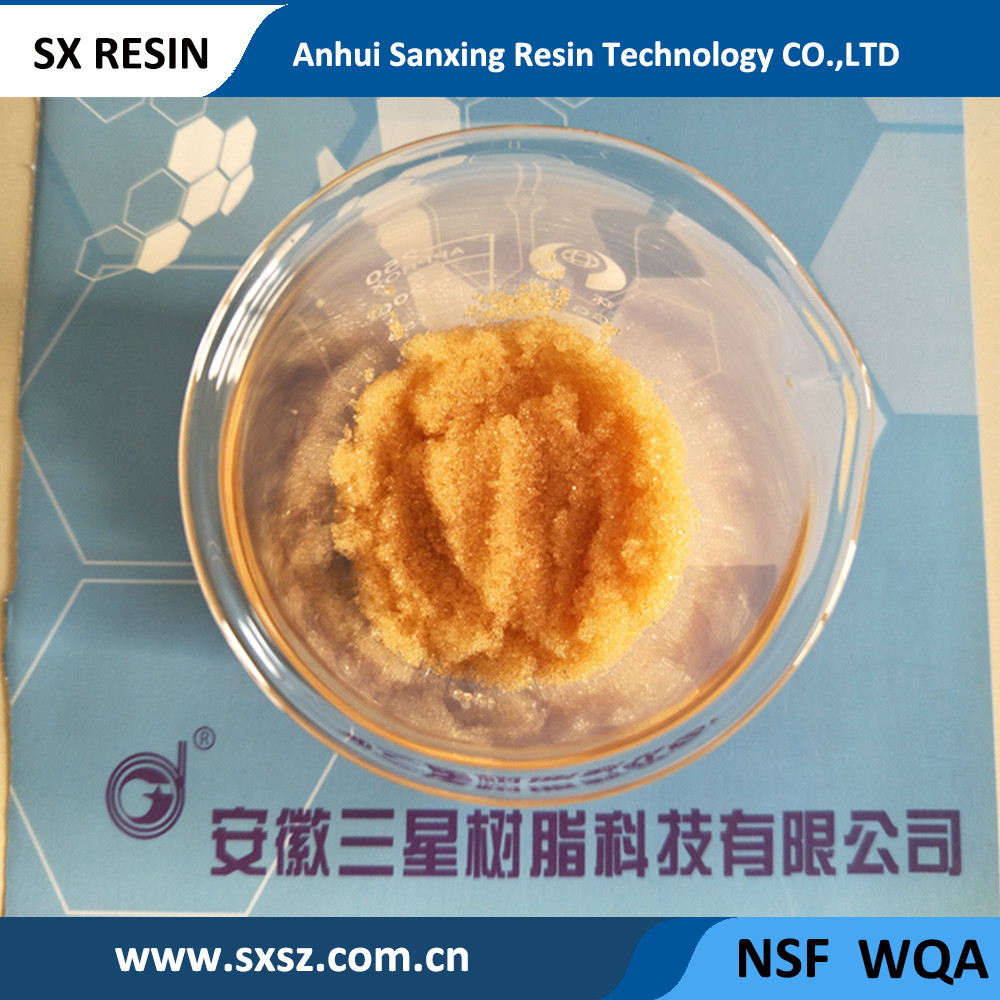

It is a kind of new product which specially used for extraction of amino acid, with modern technics " twice polymerization with once pore-forming". It has suitable skeleton construction, uniform pore size, and particular micropore constitution, so it can work with large exchange capacity, strong anti-penetration performance and good physical strength. When adsorbing the amino acid, it proves that it has large adsorptive capacity ( general size:140kg/m3,improved type can work better), speedy adsorption and elution, Strong contamination resistance and long useful life. Our this product has been appraised by specialist of USTC (University of Science and Technology of China), the quality has reached international advanced level in the like products
2.Typical Physical and Chemical Properties:
Items |
Specification | ||
Polymer Matrix Structure |
Crosslinked Polystyrene Divinylbenzene | ||
Physical Form and Appearance |
Golden yellow colorSpherical beads | ||
Functional Groups |
R-so3 | ||
Ionic Form,as shipped |
Na+ | ||
Total exchange capacity (dry) |
≥4.5Mmol/g | ||
Total Capacity, Na+ form, wet, volumetric |
≥2.0eq/l min | ||
Moisture Retention, Na+ form |
43-47% | ||
Particle Size Range |
General size |
0.315mm-1.25mm | |
Small size |
0.315mm-1.00mm | ||
Big size |
0.50mm-1.25mm | ||
Uniformity Coefficient (max.) |
1.6 | ||
Effective size |
≥0.50mm | ||
Reversible Swelling |
Na+ → H+ (max.) |
7% | |
Shipping Weight (approx.) |
780 -880g/l | ||
Specific Gravity, moist Na+ Form |
1.28 | ||
Temperature Limit |
120°C (250 °F) | ||
PH Range, Stability |
0 - 14 | ||
3.Suggested Operating Condition
Maximum Temperature |
Na+ Form |
120°C (248oF) max. |
H+ Form |
100°C (212oF) max. | |
Backwash Rate |
25 to 50% Bed Expansion | |
Regenerant Concentration |
Hydrogen Cycle |
3% HCl or2 to3% H2so4 |
Sodium Cycle |
6% to8% NaCl or 3% NaOH | |
Regenerant dosage |
HC1 or H2so4 |
HC1 orH2so4 Volume:resin volume =3:1 |
NaCl |
NaCl Volume:resin volume =2:1 | |
NaOH |
NaOH Volume:resin volume =3:1 | |
Regenerant Flow Rate |
2to4 BV/h | |
Regenerant cOntact Time |
at least40 minutes | |
Service Flow Rate |
10-25m/h | |
4.Applications
It is mainly used in extracting of all kinds of aminophenols,especially for lysine, glutamic acid, glutamine and so on
