| Brand Name: | renke |
|---|---|
| color: | white |
| Theory: | Inductance Sensor |
| Resolution: | * |
| Size: | * |
| Model Number: | SHT-58 |
| Place of Origin: | China (Mainland) |
| Warranty: | 2years |
| water proof: | double water proof |
| MOQ: | 50pcs |
| Interface: | I2C |
| Wire: | D8mm |
| Delivery time: | 5days for 1000pcs |
Quick Details
Specifications

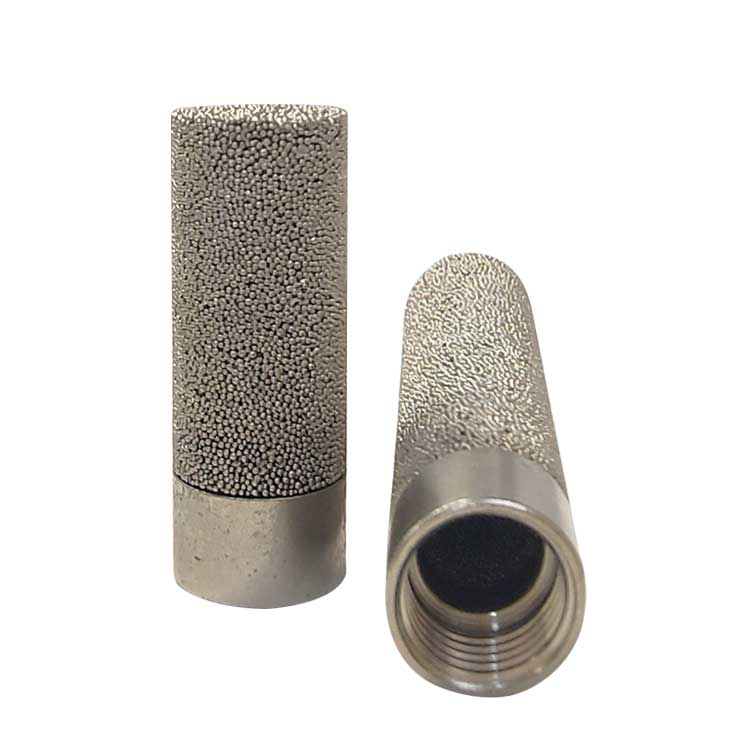

High temperature sensor cover housing
1. Model: TZCN-86
2. Size: 86*66*15mm(Internal diameter: 10mm)
3.Certification: ISO9001, CE, FCC, ROHS
this product model is: tzcn-86, length 86mm, inner diameter 10mm, hole depth 66mm, this model includes copper head, connecting nut, lock tailstock and other three parts. Copper head material for copper particles sintered, link nut is brass, stainless steel lock tailstock. Operating temperature range: -50~+120 ℃. The wall thickness of the product is 2.2mm. The material is copper and nickel plated. The identification is very simple.
| Name | High temperature sensor cover housing |
| Color | Nickel white |
| Model | TZCN-86 |
| Parts | Brass head, connecting nut, lock tailstock |
| Material | Copper head:Copper particles, connecting nut:Brass, lock tailstock:stainless steel |
| Size | 86*66*15mm(Internal diameter: 10mm) |
| Temperatur e range | -50~+120℃ |
| Certification | ISO9001, CE, FCC, ROHS |
about Pure metal sensor housing:
the product is made of copper granule sintered, which is breathable and high temperature resistant. the product is dustproof but not waterproof, and cannot be used in high humidity. Customers who need waterproof products please choose other styles.
Scientific knowledge: the diameter of water molecule is 4x10-10m, and the diameter of fog drop can reach 1~2mm when 0.5mpa is used, and 0.2~0.5mm when pressure is 1~3MPa. If pressure is increased to 10MPa, the diameter of general particles can reach 0.05~0.2mm. the air permeability hole diameter of this product is 0.4~0.5mm.
