Size: | as requested |
---|---|
Type: | Abrasive Block |
Brand Name: | MORE |
Material: | Diamond |
Grit: | as requested |

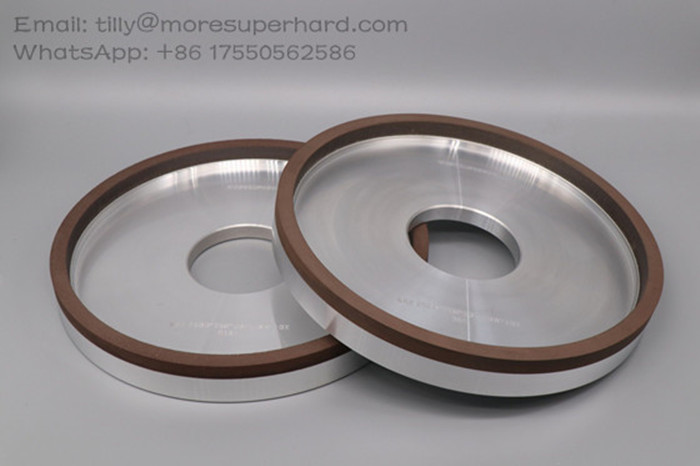

Model Number: | 6A2 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Application:
Especially for face and peripheral grinding of carbide&CBN tools.
Advantages:
1.Precision control of geometric tolerance
2.Good Self-sharpening
3.High Working Efficiency
4.Good Elastic &Good Polishing Performance
5.Superior insert Edge quality
DRAWING&SPECIFICATION
Type |
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
6A2 |
100 |
40 |
32,40 |
5,10,20 |
10 |
125 |
40 |
32,40 |
5,10 |
10 | |
150 |
40 |
32,40 |
5,10,15,20 |
8,10 | |
Grit: 230/270,325/400, W40(500#), W35,W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#),... |
When grinding CBN Tools, resin bond diamond grinding wheel is mostly used. If the machining Tolerance is big, you can use 140/170 for rough grinding,then Use230/270,W35,W28 for fine grinding. If you want to save cost & time you Can choose W35 for whole grinding.
