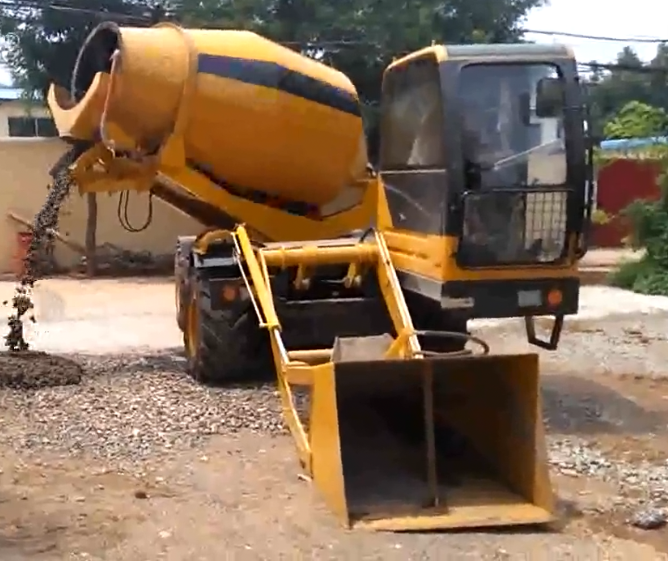

Good quality 3.5m3 self loading concrete mixer truck



Product description:

the 3.5m3 Mobile Self Loading Concrete Mixer Truck can supply high quality ready mixed concrete 3.5cbm per batch. the productivity is 14-18m3 per hour.

3.5cbm self loading concrete mixer combines the function of concrete mixer and concrete mixer truck, greatly save the mixing and transportation time, and ensure the mixing quality.



Specifications of 3.5m3 Mobile Self Loading Concrete Mixer Truck:

Drum capacity: 5.4cbm

Real concrete yield per batch: 3.5cbm

Productivity: 14-18cbm per hour

Transmission: Hydraulic, 4 wheel driver,2 wheel steering

Tyre size: 16/70-20

Engine: 85kw Yuchai or Cummins

Discharge method: 270°Discharging concrete

Frame structure: Whole frame or articulated frame

Weight:7200kg

Overall dimension(L*W*H):7.52.53.2m

Container required: 1*40HQ



Working procedure of the 3.5cbm self loading concrete mixer truck:

1. the self loading concrete mixer truck 3.5m3 works as a loader to load aggregates and cement to the mixing drum;

2. with accurate loader weighing system, every bucket of material is accurately weighed;

3. the water pump and water meter supplies the required water or additive to the mixing drum;

4. the mixing drum of self loading concrete mixer mix all materials uniformly;

5. after the self loading concrete mixer arrives the worksite, reverse the drum, and 270degree rotating the drum to unload the concrete to the right place.



Features of good quality mobile 3.5m3 self loading concrete mixer truck:

1. Forward rotating the drum tank starts to mix concrete, reverse rotating tank starts to discharge;

2. the drum tank of 3.5cbm mobile self loader can 270 degree horizontal rotate to discharge concrete;

3. 4*4 four wheel drive, Hydraulic torque converter transmission with open gear oil pump, the self loading concrete mixer truck has high and low speed in order to operate easily. Highest speed of 3.5m3 self-loading concrete mixer can reach 25km/h

4. High quality 16/70-20 Engineering tires, suitable for any working condition

5. Supply water by hydraulic system, equip with two tank with a total capacity of 2*350L

6. Closed cab with tilting front window. Anatomic seat with flexible suspension and height adjustment.the cab can be designed to the left or right of the drum tank according to your drive habit.

7. Accurate loader weighing system is equipped for aggregate and cement weighing of 3.5cbm self-loading concrete mixers, it can meet precise concrete formulation requirements.

8. Water flowmeter is used for water flow control, ensures the good quality of concrete.

9. Equipped with reverse image, convenient for driver operation.
