1.Model:DZL Chain Grate Stoker Type Boiler

2.Capacity:1-20ton/h

3.Pressure:0.7Mpa(7bar),1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)

4.Steam temperature:174 °c,184 °c,194°c, 204°c,225°c

5.Fuel:coal,biomass

6.Structure:horizontal water-fire tube, single drum

7.Type:we have two types.

DZL:Chain grate stoker automatic feeding fuel and removing dregs. DZH:Manual operate moving grate, needs labour to feed fuel and remove the dregs.

8.Application:industrial production and processing

Sush as:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

DZL type horizontal chain biomass- fired steam boiler is a horizontal three - trip water - fire tube boiler.Two fire tubes are arranged in the pot barrel, and both sides of the furnace chamber are equipped with light tubes and water wall tubes.the combustion equipment adopts light chain grate to realize mechanical coal feeding, and is equipped with drum and induced draft fan to realize mechanical ventilation.the fuel falls on the grate from the coal sill, burns along with the grate, and the flue gas passes through the upper combustion chamber of the rear arch, enters the first bundle through the smoke chamber of the rear shed pipe to the front smoke box, folds into the second bundle from the front smoke box to the back smoke box, is introduced into the flue, dust collector and chimney through the induced draft fan, and finally exhausts to the atmosphere.the boiler automation level is high, the boiler feed water automatic regulation, high and low water level alarm, low water level interlock protection, lead, fan interlock protection.Boiler coal, slag and other operation mechanization, reduce the labor intensity of workers, complete supporting auxiliary machines.

Performance advantage

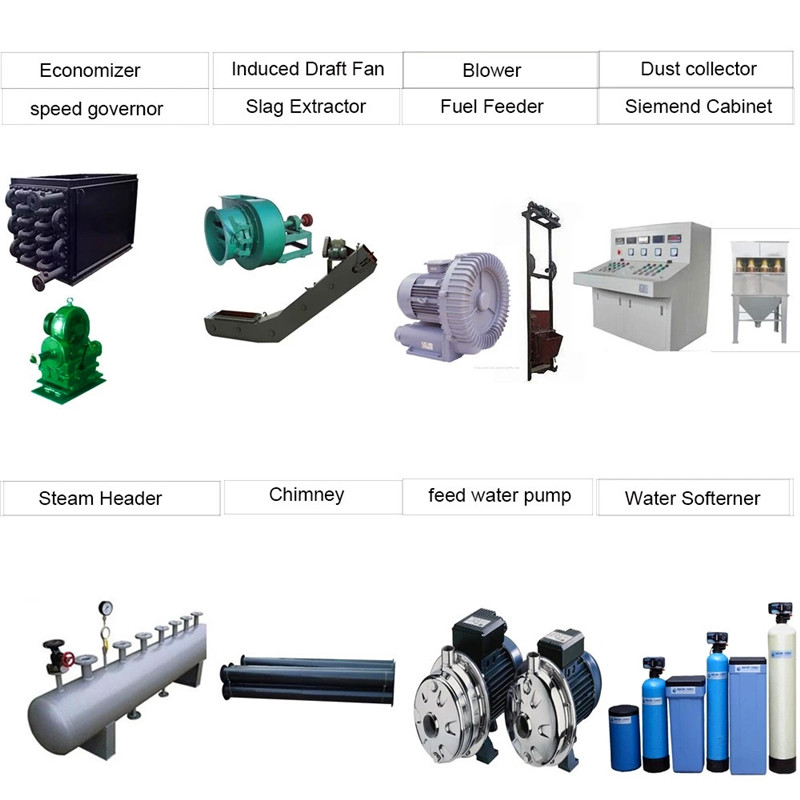

When DZL type chain grate horizontal quick loading steam boiler leaves the factory, the package is as follows:

1. the steam boiler is composed of boiler body, chain grate coal hopper, fire hole, fire door, front and rear smoke box, furnace wall and insulation layer.

2. Speed regulating box driving device, including motor, etc.

3. Blower: includes motor, blower seat, inlet pipe, etc.

4. Induced draft fan: including motor, bearing seat and flue connecting pipe, etc.

5. Scraper slag remover: including motor.

6. Escalators and railings.

7. Dust collector: including dust collector bracket, dust collector bucket, anchor bolt, etc.

8. the chimney.

9. Water supply equipment and valve instruments, pipe parts.

Electric control cabinet.

11. Coal loading machine:(optional).

12. When two or more boilers are installed at the same time, it shall be noted that the marks (factory number of the boiler) on the components such as the blower (including the blower seat and interface) and the induced draft fan (including the air inlet tube) and the economizer are the same as those on the boiler.

13. with the furnace documents: there are two copies of general drawing, main body, body, barrel, furnace wall, pipe instrument valve, insulation layer, foundation drawing, chain grate, platform escalator, chimney, fragile parts drawing and pressure component strength calculation, installation instructions, boiler general list, and one copy of product quality inspection certificate.

Technical Parameters

Boiler Application

1. Catering and unit canteen (catering, factory canteen, construction site, hospital, school canteen, etc.)

2. Clothing ironing, washing and drying (clothing factories, garment factories, dry cleaners, hotels, etc.)

3. Food processing (noodle processing, noodle products, soybean products, pickled products, wine, meat processing, etc.)

4. Pharmaceutical processing (cooking, steaming, boiling, disinfection of Chinese medicinal materials, etc.)

5, sterilization (tableware, medical equipment, food utensils disinfection;High temperature steam disinfection in the farm, etc.)

6. Sauna bath (hotel sauna, sweat room, hot spring bath, swimming pool, etc.)

7. Agricultural greenhouse and seed production (sterilization of edible fungi, heating and humidifying of agricultural greenhouse, seed production of plants, etc.)

8. House heating (heating for hotels, factories, etc.)

9, cement products curing: cement pipe, cement room, telephone poles, cement components.

10. Slaughtering industry, used for hot water heating of slaughtering production line.

11. Plastic cleaning, used for high-temperature plastic cleaning.
