Product Main

Quick Details

Size: 300-3500mm
Finishing: Ti-coated
Blade Material: Diamond
Brand Name: SCT
Material: Diamond+metal power
Model Number: SCT-300/3500
Place of Origin: China (Mainland)
Product name: Diamond saw blade
Blade Material: Diamond + metal power
Technology: Cold press and hot press
Used: Marble,granite,sandstone,concrete,asphalt cutting
Features: Fast cutting speed and long lifespan
Certification: ISO9001-2008,CE,SGS
Quality: European Standard
OEM: Support
Inner hole: 22.23mm,50/60mm,100mm
Advantage: High effiency, long life,no chipping

Specifications

Vacuum Brazed Diamond Saw Blade

Product Features:
1 High bonding strength, good sharpness,high cuting effciency,good life span
2 Vacuum brazed diamond saw blade can be used to cut granite,marble,superhard natural stone,walls,glass,ceramic tiles etc
Diameter(mm) Thickness(mm) Welding Bore(mm) Teeth
105 1.2 Vacuum brazed 20/22.23 12
110 1.2 Vacuum brazed 20/22.23 12
115 1.4 Vacuum brazed 20/22.23 13
125 1.4 Vacuum brazed 20/22.23 15
150 1.6 Vacuum brazed 20/22.23 11
180 1.6 Vacuum brazed 20/22.23 13
230 1.8 Vacuum brazed 20/22.23 16

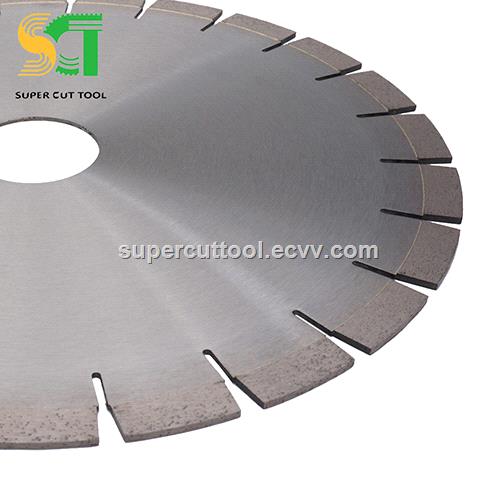

 SCT Long Life Diamond Blade For Cutting Quartz For Marble Wholesale Diamond circular saw blade for sale

 Block Cutting Segment and Blade for Granite Product Features:
1 the blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan
2 Good cutting result:smooth cutting,flat surface and even size
3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening
Product name Diameter(mm) Steel Core(mm) Segment Dimension(mm) Segment Number Shape Application
SCT Block Cutting Segment for G 900 5.0 24*7.0/6.2*13(15,20) 64 Z3T or Z3T-M (conical) Granite
1000 5.0 24*7.0/6.2*13(15,20) 70
1200 5.0 24*7.4/6.6*13(15,20) 80
1400 6.0 24*8.0/7.2*13(15,20) 92
1400 6.5 24*8.4/7.6*13(15,20) 92
1600 7.2 24*9.2/8.4*13(15,20) 108
1800 7.5 24*10/9.2*13(15,20) 120
2000 8.0 24*11/10*15(20) 128
2200 9.0 24*11/10*15(20) 132
2500 9.0 24*12/11*20(30) 140
2700 9.0 24*12/11*20(30) 140
3000 9.3 24*13/12*20(30) 160
3500 9.5 24*13.5/12.5*20(30) 180



 General Splitting Blade and Segment
Product Features:
1 Good sharpness,high cutting efficiency and long life
2 Refine splitting edge quality and good cutting performance
3 Suitable for all classes marble splitting
Diameter(mm) Steel core(mm) Head size(mm) No. Shape Application
400 2.6 403.810 28 GENERAL SPLITTING Marble
450 3 404.210 32 GENERAL SPLITTING Marble
500 3 404.210 36 GENERAL SPLITTING Marble
550 3.6 405.010 40 GENERAL SPLITTING Marble
600 3.6 405.010 42 GENERAL SPLITTING Marble
650 4 405.510 46 GENERAL SPLITTING Marble
700 4 405.510 50 GENERAL SPLITTING Marble
750 4 405.510 54 GENERAL SPLITTING Marble
800 4.5 406.010 57 GENERAL SPLITTING Marble
850 4.5 406.010 58 GENERAL SPLITTING Marble
