| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO,CE,EAC |
| Brand Name: | ALPA |
| Type: | Air Classifying Mill |
| Condition: | New |
| Warranty: | 1-Year Warranty |
| Weight: | Customized |
| Dimension(L*W*H): | Customized |
| Model Number: | CSM-H |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 2-3000kg/h |
| Power(W): | Adjustable |
| Motor Type: | |
| Product Size(um): | 5-300 |
| Name: | CSM-H Air Classifying Mill |
| Grinding Process: | Mohs hardness less than 5 |
| Classifying wheel: | Horizontally installation |
Quick Details
Specifications
Pigment Ultrafine Grinding and Classifying Milling Production Line Air Classifying Mill
Application: Widely used in non-metallic minerals (Mohs hardness less than 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
Advantages:
1.Available D50:1.515μm
2.Integration of grinding and classifying, classifying wheel is adjustable to obtain ideal particle
3.Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency
4.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process
5.PLC control system, easy operation
Working Principle:
the material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc. At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding. the grinded material moves to the classifying zone with the airflow. the classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
Application: Widely used in non-metallic minerals (Mohs hardness less than 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
Advantages:
1.Available D50:1.515μm
2.Integration of grinding and classifying, classifying wheel is adjustable to obtain ideal particle
3.Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency
4.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process
5.PLC control system, easy operation
Working Principle:
the material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc. At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding. the grinded material moves to the classifying zone with the airflow. the classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.

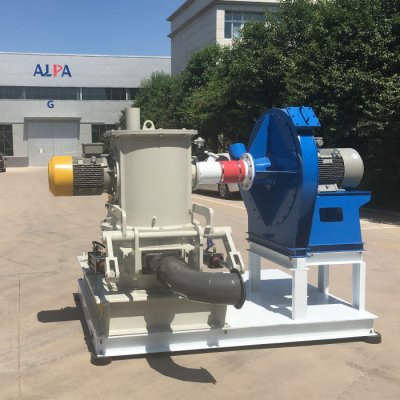

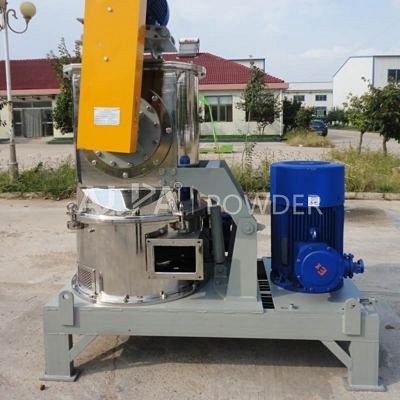

CSM-H Air Classifying Mill
