| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | Aokux |
| Light Source: | LED |
| Emitting Color: | White |
| IP Rating: | IP67 |
| Type: | Type A |
| Model Number: | AO-HI-A1 |
| Place of Origin: | China (Mainland) |
| Base Type: | |
| Lamp Body Material: | Aluminum |
| Certification: | CE,EMC,LVD,RoHS |
| Beam Angle(°): | 360 |
| Color Temperature(CCT): | Pure White |
| CRI (Ra): | 80 |
| Lamp Luminous Efficiency(lm/w): | 160 |
| Lamp Luminous Flux(lm): | 16000 |
| Lamp Power(W): | 45 |
| Input Voltage(V): | 100-240 |
| Intensity: | 200000cd |
Quick Details
Specifications

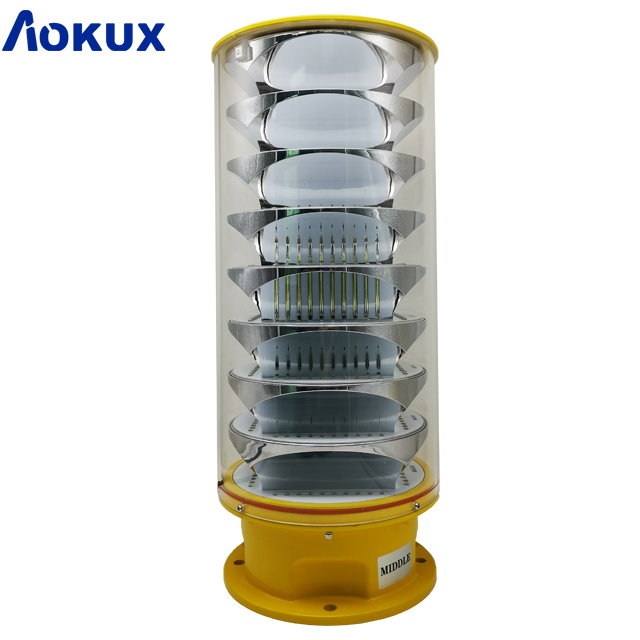

Aokux good quality 360 degree aircraft high intensity aviation obstruction light obstacle lights
Model AO-HI-A1 Type A High Intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height. Ultra high intensity CREE LED is used for the light source ensure light's long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.
Compliance:
1. ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light.
2. FAA L-856.
Features:
1. CREE ultra high intensity LED as light source saving power.
2. Power supply available in DC(12-48V DC) or AC(110/220V AC).
3. Unique design and UV protected polycarbonate lens for converging light and saving LED power.
4. UV protection Powder coated bright yellow color base make better visibility
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection.
6. Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high.
8. Built-in photocell for day/twilight/night operation.
9. Surge and lightning protection.
Specification:
Application:
AO-HI-A1 Type A High intensity light is is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150m, and most time work with low intensity lights & medium intensity light installed on the lower place.
Model AO-HI-A1 Type A High Intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height. Ultra high intensity CREE LED is used for the light source ensure light's long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.
Compliance:
1. ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light.
2. FAA L-856.
Features:
1. CREE ultra high intensity LED as light source saving power.
2. Power supply available in DC(12-48V DC) or AC(110/220V AC).
3. Unique design and UV protected polycarbonate lens for converging light and saving LED power.
4. UV protection Powder coated bright yellow color base make better visibility
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection.
6. Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high.
8. Built-in photocell for day/twilight/night operation.
9. Surge and lightning protection.
Specification:
| Model NO.: | AO-HI-A1 |
| Light Source | CREE high intensity LED |
| Available Colors |
White |
| Light Intensity(CD) |
200,000cd±25%(Daytime) 20,000cd±25%(Twilight) 2,000cd±25%(Night) |
| Horizontal Output(degrees) |
360 |
| Vertical Divergence(degrees) |
3-7 |
| Flash Characteristics |
40-60 flashes per minute |
| Operation Mode |
24 hours operation, 3 different modes |
| LED Life Experience(hours) |
>100,000 |
| Operating Voltage |
DC(12-48V DC) or AC(110-240V AC) |
| Power(W) |
<80W |
| Circuit Protection |
Integrated |
| Body Material |
Polycarbonate |
| Base Material |
Powder coated die-casting aluminum |
| Mounting |
Θ190θ12 |
| Dimension(mm) |
236236545 |
| Weight(kg) |
8.2 |
| Product Life |
5 years Plus |
| Ambient Temperature(℃) |
-50℃~+60℃ |
| Humidity |
0%-100% |
| Wind Speed |
80m/s |
| IP grade | IP67 |
| Available Options | GPS Sync Flashing, infra-Red (IR) for NVG |
Application:
AO-HI-A1 Type A High intensity light is is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150m, and most time work with low intensity lights & medium intensity light installed on the lower place.
