Product Main

Quick Details

Warranty: 1 year
Certification: None
Brand Name: BRIGHT
Type: Band Heater
Condition: New
After-sales Service Provided: No overseas service provided
Power(W): 630
Voltage: 240
Model Number: YMQ-101.663.5 240630
Place of Origin: China (Mainland)
Power Source: Electric

Specifications

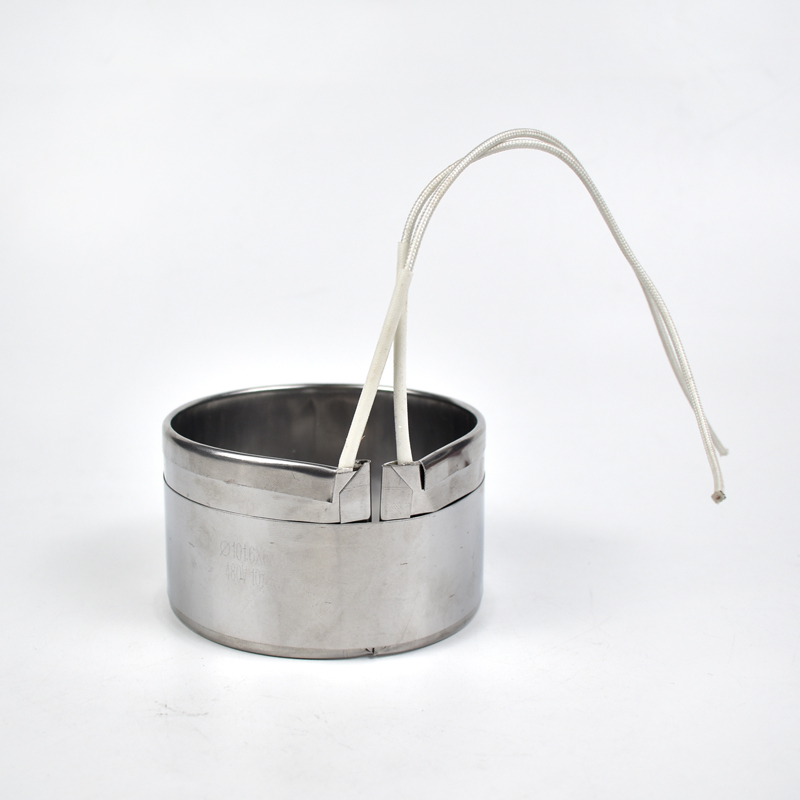

240V 630W Electric Molding Machine Ring Heating Element 101.6*63.5Mm Ss304 Stainless Steel Mica Band Heater

Description:
Name: mica band heater Interior diamter: 101.6mm Height: 63mm Power: 630W Volatge: 240V

Products Description
Mica band heater has the characteristics ofReasonable structure, beautiful appearance, stable performance, uniform heating, quick heat dissipation, long service life, good insulation performance and high pressure resistance.
Sheath Material
Stainless Steel cover for ceramic band heater
Connection Method
1.Metal box
2.Screw post terminals
3. High Temperature Plug
4.High temperature cable/
5.Ceramic block
Nominal Wall Thickness
Premium Heat: "
Power Saver: " + 5/8" (Outer Insulation)
Power Saver PLUS:" + 1.5" ( Outer Insulation)
Heating Elements (coil)
Cr20Ni80
Lead Wire Terminals
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat
Shrink sleeving
2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used
3.Mostly with nozzle heaters/ 180° from gap
4.PTFE insulated wire
5.Fiberglass insulation wire
Minimum size
25*25mm
Usage temperature
≤300℃
Surface loading power
2-5W/c
240V 630W Electric Molding Machine Ring Heating Element 1016635Mm Ss304 Stainless Steel Mica Band Heater
