Quick Details

Warranty: 1 year
Certification: None
Brand Name: BRIGHT
Type: Band Heater
Condition: New
After-sales Service Provided: No overseas service provided
Power(W): 2080
Voltage: 480
Model Number: YMQ-165.1139.7 4802080
Place of Origin: China (Mainland)
Power Source: Electric

Specifications

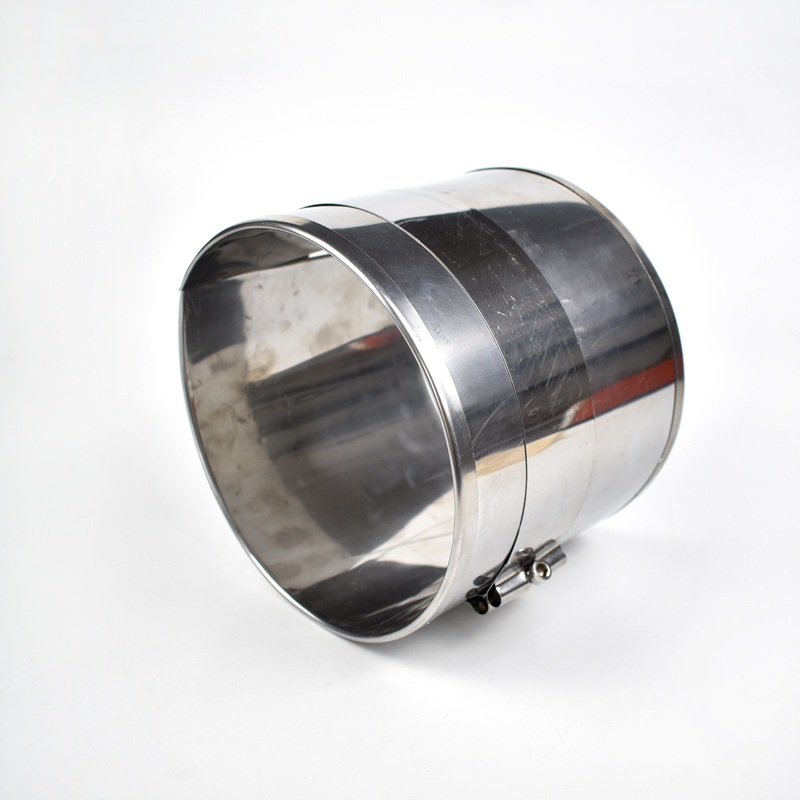

Extruder 480V 2080W Heating Element 165.1*139.7Mm Mica Band Heater for Plastic Injection Molding

Name: mica band heater Interior diamter: 165.1mm Height: 139.7mm Power: 2080W Volatge: 480V

Extruder 480V 2080W Heating Element 16511397Mm Mica Band Heater For Plastic Injection Molding
Products Description
Mica band heater has the characteristics of reasonable structure, beautiful appearance, stable performance, uniform heating, quick heat dissipation, long service life, good insulation performance and high pressure resistance.


Sheath Material
Stainless Steel cover for ceramic band heater
Connection Method
1.Metal box
2.Screw post terminals
3. High Temperature Plug
4.High temperature cable/
5.Ceramic block
Nominal Wall Thickness
Premium Heat: "
Power Saver: " + 5/8" (Outer Insulation)
Power Saver PLUS:" + 1.5" ( Outer Insulation)
Heating Elements (coil)
Cr20Ni80
Lead Wire Terminals
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat
Shrink sleeving
2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used
3.Mostly with nozzle heaters/ 180° from gap
4.PTFE insulated wire
5.Fiberglass insulation wire
Minimum size
25*25mm
Usage temperature
≤300℃
Surface loading power
2-5W/c
