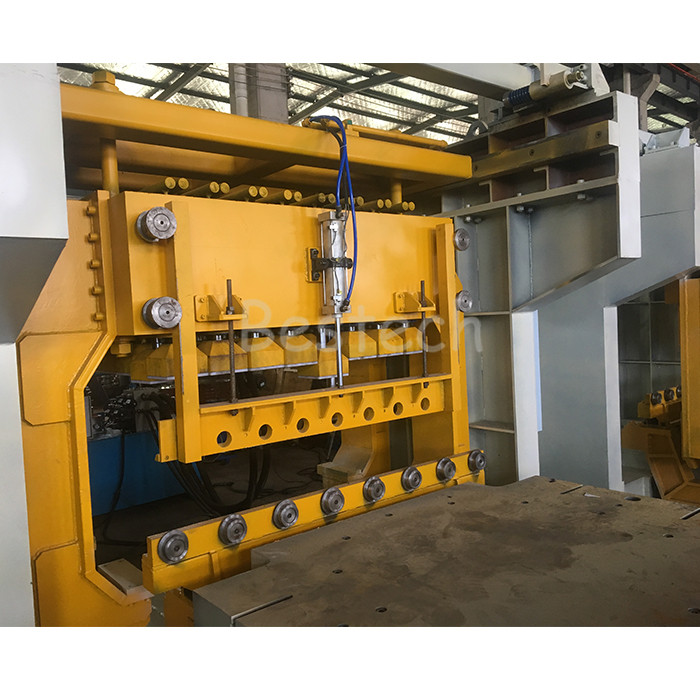

ZD Hydraulic green sand molding machine Belongs to a semi-automatic molding machine. Is through a number of hydraulic cylinder thrust compaction sand sand in the sand box, so that the sand get uniform uniform strength requirements, the use of jacking rod jacking sand box, to achieve the effect of the mold. this equipment is generally used in pairs. One machine is used for loading and the other machine is used for unloading. The hydraulic system adopts double pump control.When the contact is rapidly extended, the two pumps supply oil at the same time, and the high pressure pump is used for oil supply in real time.

Features/Equipment characteristics

*Suitable for produce bigger size pieces

*Hydraulic working method is better than pneumatic



Model	ZD1009	ZD1210	ZD1310	ZD1407
Sand flask inner size(mm)	900*800	1200*1000	1300*1000	1400*750
Worktable size(mm)	1100*900	1450*1070	1550*1170	1650*900
Compaction pressure(kg/cm2)	10	10	10	10
Working method	Hydraulic
We can design and produce different sizes according to customers' requirement.

We manufacture and design full scope of green sand casting equipment. Including Green Sand Mixer, Sand Feeder and Conveyor, Sand Moulding machine and Sand Reclamation Machine.

We also design custom production line of green sand casting production.
