| Machine Type: | Sandblaster |
|---|---|
| Use: | Descaling / Stripping |
| Certification: | CE |
| Feature: | Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor |
| Brand Name: | Bestech |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Material: | Metal / Coil |
| Industry Used: | |
| Cleaning Type: | Clean-In-Place (CIP) |
| Cleaning Process: | |
| Fuel: | Electric |
| Model Number: | Q69 |
| Place of Origin: | China (Mainland) |
| Name: | shot blasting machine |
Quick Details
Specifications

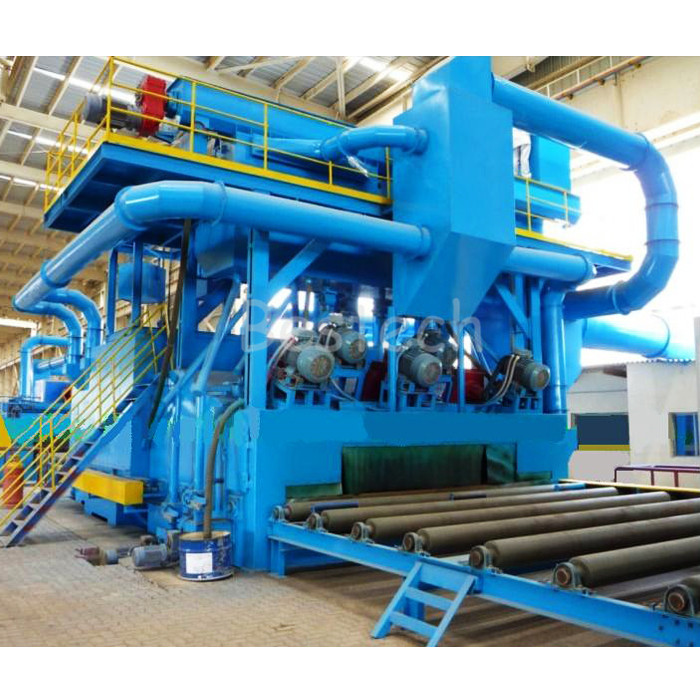

Roller Conveyor shot blasting machine

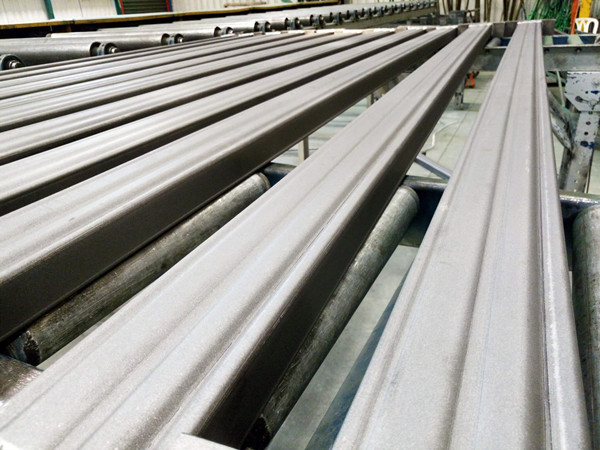

Sheet metal pipe and profile shot blasting machines sheet metal, NPI, NPU, angle iron, profile etc. It is preferred for surface cleaning works of products. It is generally used for sandblasting long or flat parts.
the parts to be sandblasted move with the help of roller conveyors at the entrance and exit of the machine. Turbines are placed in the machine body at appropriate angles so that the surface of the part can be sandblasted from below and above. the obvious advantages are that the products can be sandblasted quickly in length, the semi-finished and finished products that can move on the roller conveyor, and the conveyor system. the conveyor speed can be adjusted for each loading according to the digital speed control part type we use in our machines and the desired blasting surface.
Technique parameter
Model |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6930 |
Max width |
800mm |
1200mm |
1500mm |
2000mm |
3000mm |
Max height |
300mm |
400mm |
500mm |
500mm |
500mm |
Speed |
0.5-4m/min |
0.5-4m/min |
0.5-4m/min |
0.5-4m/min |
0.5-4m/min |
Wheels |
4 pcs |
4 pcs |
4 pcs |
6 pcs |
6 pcs |
Capacity |
4x125kg/s |
4 x125kg/s |
4 x125kg/s |
6 x125kg/s |
6 x125kg/s |
Air volume |
17560 m3/min |
19000 m3/min |
19550 m3/min |
27758 m3/min |
28050 m3/min |
Power |
78kw |
113kw |
156kw |
224kw |
204kw |
