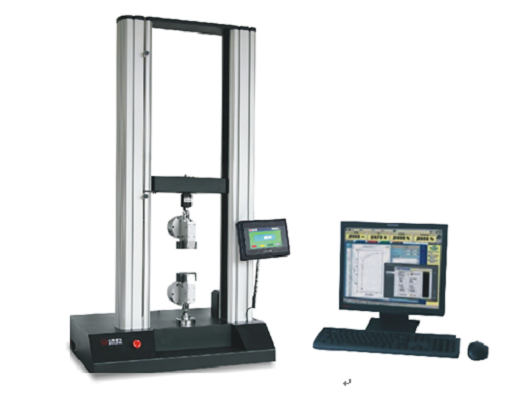

YG(B)026G Series Electronic fabric tensile tester

[Appliance range]:
It is used for testing the mechanical properties of various textiles such as drawing, tearing, jacking, fixed elongation, fixed load, elasticity, seam slip, stripping, etc
[Relative standard]:ASTMD5034,ASTMD5035,ASTMD2261,ASTMD5587,ASTMD4964,ASTMD3936,ASTMD1683,JISL1096 etc.(Some representative standards are listed above, among which some functions require specific gripper and sensors selected according to the actual implementation.)
[Parameter]:
1. Test method: According to the internationally preferred constant velocity elongation (CRE) principle
2. Force measuring system: imported high-precision force measuring sensor
3. Measuring range: 1% ~ 100% of full scale
MODEL    50    100    250    500    1000
FS    500N    1000N    2500N    5000N    10000N
4, clamping method: manual clamping, pneumatic clamping
5. Minimum division value: 0.1N
6.Measuring accuracy: ≤ ± 0.2% F S
7, clamping distance: automatic positioning, digital setting
8. Adjusting accuracy of clamping distance: ± 0.1mm
9. Speed control system: imported AC servo speed control system
10. Stretching speed: 0.01-1000mm / min digital speed regulation, error ≤ ± 2%
11, the maximum travel of the instrument: 800mm (transverse beam) (can be customized)
12. Gantry width: 420mm
13. Elongation resolution: 0.001mm
14. Sampling frequency: 2000 times / second
15. Power supply: AC220V ± 10% 50Hz 1KW
16. Dimensions: 920 700 1720mm (L W H)
17. Weight: 150kg (standard configuration)
