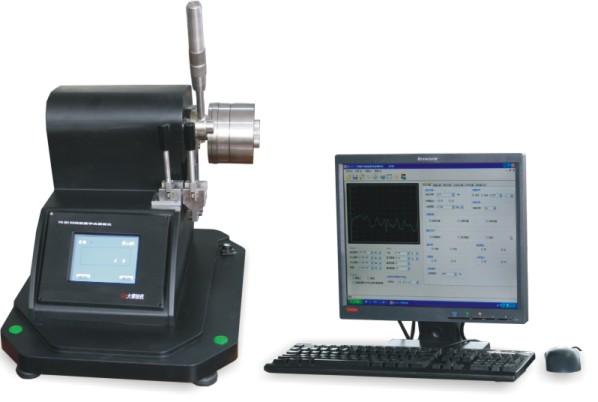

Digital Elmendorf Tear Tester YG(B)033E

[scope of application]:
It can be used to determine the tear strength of various woven fabrics (Elmendorf Elmendorf method), and also can be used to determine the tear strength of thick paper, plastic cloth, electrical adhesive cloth, etc.
[related standards]
GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734 etc.
[instrument characteristics]:
1, 128N test range (another customized 160N)
2, microcomputer control, digital decoding, support online communication.
3, color touch screen control, menu interface in Chinese and English
4. Pneumatic clamping, automatic cutting.
5. Selection of multiple measurement units (cN, GF, cP).
[technical parameters]:
1. Scope of testing:A hammer:0 ~ 16N B hammer:0 ~ 32N C hammer:0 ~ 64N D hammer:0 to 128N (another custom 160N)
2, test accuracy:≤±0.2%FS
3, tearing length:43mm
4, automatic incision length:20±0.2mm
5. Sample size:10063mm
6. Sample holder:Pneumatic mode
7, work power supply:AC220V 50Hz 100W
8. Size:560480530mm
9. Weight:78Kg
