Product Main

Quick Details

Brand Name: mairsturnstile
material: 304 stainless steel
Color: silver
Warranty: 2 years warranty
Card Type: IC
Model Number: mst113
Place of Origin: China (Mainland)


    • Tripod turnstile is ideal for both indoor and outdoor settings.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push, Fingerprint and Biometric device).
  • in case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
  • It is suitable for areas with high traffic.
  • Long-life performance, high operation dependability and fast response.
  • the whole system runs smoothly, low noise, no mechanical impact.
  • Self-test function, when power on, system restoration automatic.
  • Single directional or Bi-directional is selectable.
  • LED indicator.
  • Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
  • When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.
  • Framework Material 304 Stainless Steel
    Dimension 1200 * 280 * 990mm
    Net Weight 50kg
    Passage Width 550mm (Arm length: 500mm)
    Passing Direction Single directional / Bi-directional
    Power Supply AC220V/110V, 50/60Hz
    Operation Voltage 24V DC
    Power Consumption 20W
    Operation Temperature -15 °C 60 °C
    Operation Humidity 0 ~ 95% (No freeze)
    Working Environment Indoor / Outdoor (Shelter)
    Flow Rate 35-40 people per minute
    LED Indicator Yes
    Input Dry contact
    Emergency Automatic arm drop when power off
    Communication RS485, TCP/IP

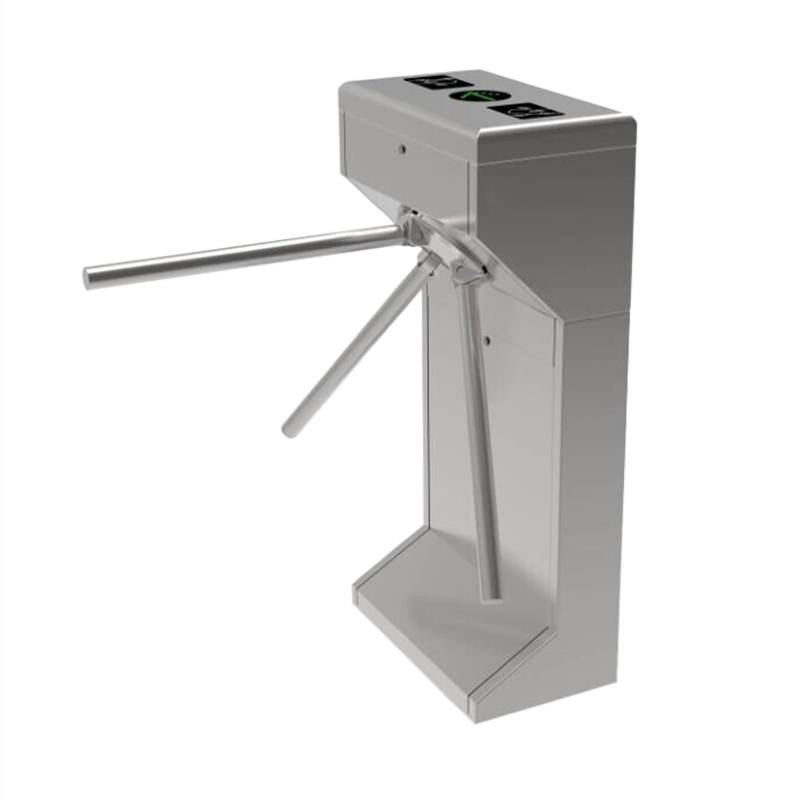

    Tripod Security Gate Turnstile MT113
