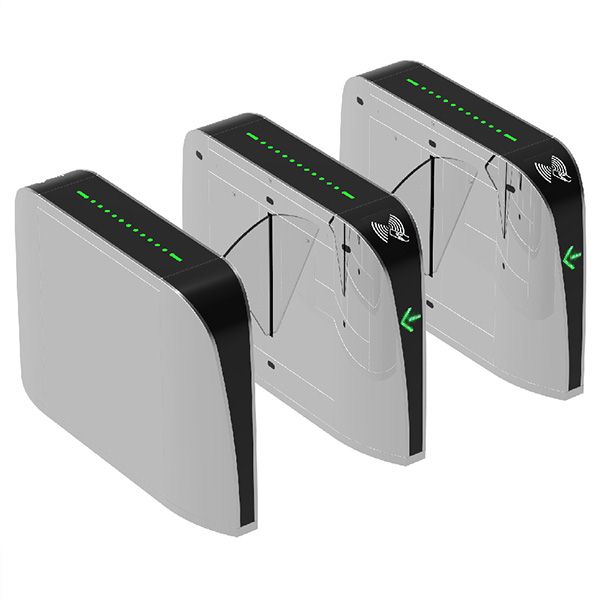

Automation flap swing turnstiles offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.A direction indicator, showed that pedestrian access to the current status of, and guide pedestrian correct and smooth passage. the fingerprint turnstile, which is hIgh integrated for every access control system, such as facial recognition device, fingerprints, QR reader, RFID systems etc.

Size	1410*300*990mm
Material	Thickness 1.2mm SUS304
Arm material	12mm transparent acrylic+light bar
Pass Width	550mm
Passage direction	Single directional/Bi-directional
Pass rate	30-35 persons/minute
Operating time	0.2 seconds
Power	AC100-240V,50/60HZ
Working voltage	24V
Working humidity	30%~95%
Working temperature	-40~+70
Working environment	Indoor
Communication interface	RS485, Dry contact
Mechanism	Flap barrier gate machine core+ZD motor+Germany belt
Infrared sensor	5 pairs
MCBF	5,000,000 Cycles
Application	Airports, Hotels, Governemnt Halls, etc
