Product Main

Quick Details

After-sales Service Provided: Overseas third-party support available
Automation: Automatic
Power: Cnc
Brand Name: Hui Ting
Condition: New
Certification: ISO 9001:2000
Extra Services: Welding / Brazing
Material / Metal Processed: Carbon Steel
Raw Material: Steel Bar
Machine Type:
Model Number: HT-3D-ST1480
Place of Origin: China (Mainland)
color: grey
axis number: 12
feeding rollers: 3 sets
input power: 380V/50HZ/3P
working wire: 4-8 mm

Specifications

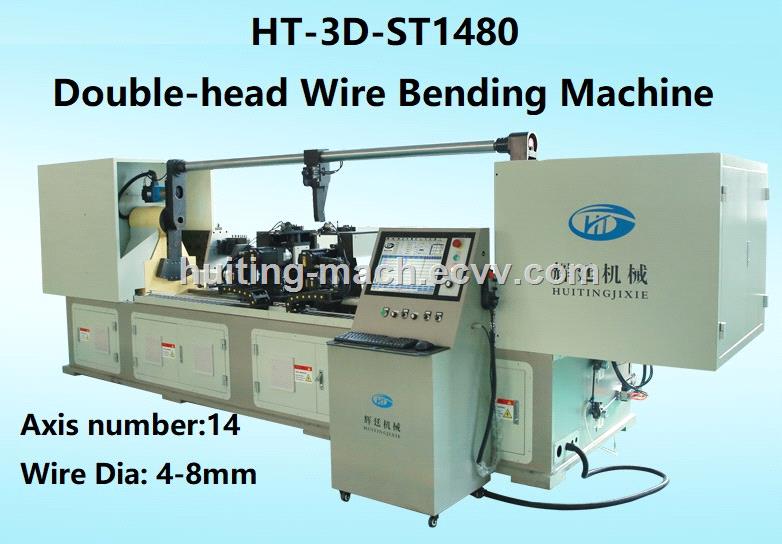

doublehead wire bending machine auto seat frame rear frames HT3DST1480 48mm 14axis Hui Ting Machinery metal

Model:HT-3D-ST1480

Number of axis: 14 axes (Tensile strength≦500N)

Wire size: 4.08.0mm

Number of feeding rollers: 3sets

Power of wire feeding motor: 2.0KW *2

Power of left and right rotation motors: 3.5KW *2

Power of left and right forward-backward motors: 3.8KW*2

Power of left and right sleeve rotation motors: 2.0KW *2

Power of left and right lifting shaft motors: 1.0KW*2

Power of cutter motor: 1.0KW

Power of wire clamping motor: 1.5KW

Power of horizontal movement motor: 1.5KW

Power of rotating alignment motor: 5.5KW

Weight of machine: 4800kg

Input power: 380V/50HZ/3P

Dimension of machine: 4630*1200*1650mm


1.     Use the strong 14-axis industrial computer control system and imported servo motor, achieving the perfect combination between intelligence and power.



2.     with the tripartite alignment mechanism, independently developed and designed by Hui Ting based on the wire  characteristics in China, meeting the domestic market needs and solving the difficulty in wire  alignment.



3.     Make the forming heads move flexibly under traction of lead screw and guidance of guide rail, ensuring the angle bending distance of products and reducing noise.



4.     Can be used for production of auto seat frames, rear frames, auto interior frames, landscape tool accessories, metal wire handiworks, kitchen utensils and table ware brackets, storage cages, supermarket trolleys and shelves and other large wire forming products.
