Product Main

Quick Details

Brand Name: XINCAN
Certification: OTHER
Type: hydraulic motor
Voltage(V): 25
Output Power: .
Model Number: XSM6
Place of Origin: China (Mainland)
Theoretical displacement(ml/ R): 59
Rated pressure(Mpa): 25
Peak pressure(Mpa): 45
Rated torque(N.m): 6600-11875
Continuous speed(r/min): 264-475
aximum speed: 0.2-250
Maximum speed(R/Max): 350
Weight (KG): 275

Specifications

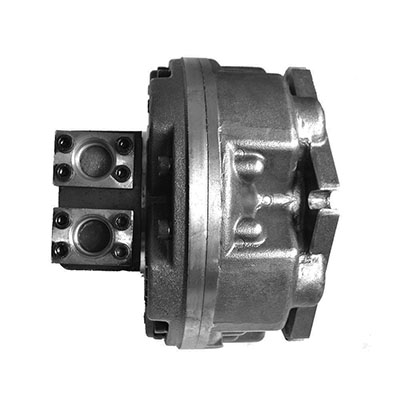

XSM6 series easier replacement radial piston hydraulic motor hydraulic drive wheel motor
  XSM series motors are a result of the many years' of experience based on Italy technology, and incorporate a number of design variations with respect to the technology intended to increase the strength of the motor casings and the load capacity of the internal dynamic components. the result is the series of motors with high continuous power ratings, both because of the reduced internal specific loads, and because of the high mechanical and volumetric efficiency that contribute in reducing the amount of heat produced and therefore also the negative effects associated with it.
XSM6 series easier replacement radial piston hydraulic motor hydraulic drive wheel motor
  Application:  Due to above these advantages, it has been widely applied in all kinds of hydraulic transmission system such as plastic injection machine, ship and deck machinery, construction machinery and equipment, hoist and transport vehicle, heavy metallurgical machinery, petroleum and mine machine, light industry equipment, lath, light industry equipment and drilling machine etc. In particular, it can be well available in driving screw rod of injection machine, hoisting winches and capstan, and driving various slew drives.
