Product Main

Quick Details

Brand Name: XINCAN
Certification: OTHER
Type: hydraulic motor
Voltage(V): 25
Output Power: .
Model Number: XWM31
Place of Origin: China (Mainland)
Theoretical displacement(ml/ R): 2449-3998
Rated pressure(Mpa): 16
Peak pressure(Mpa): 30
Rated torque(N.m): 7780-10176
Continuous speed(r/min): 389-636
aximum speed: 1-200
Maximum speed(R/Max): 128
Weight (KG): 307

Specifications

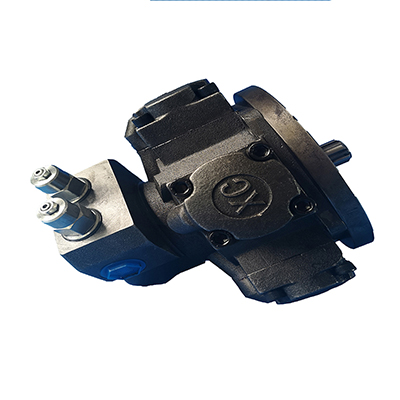

XWM31 series cam ring five star hydraulic motor radial piston hydraulic drive motor for dredger and for drilling
  XWM series motors are new products, developed by combining advantages of similar products at home and abroad with practical experience of our company accumulated over one decade. XWM seriesmotors are characterized by wide range of displacement, great interchangeabilitu (We produce lots ofnon-standards products, which can replace similar products at home and abroad.), Great durabilityand good design.

XWM31 series cam ring five star hydraulic motor radial piston hydraulic drive motor for dredger and for drilling

XWM31 series cam ring five star hydraulic motor radial piston hydraulic drive motor for dredger and for drilling
Application:  Due to above these advantages, it has been widely applied in all kinds of hydraulic transmission system such as plastic injection machine, ship and deck machinery, construction machinery and equipment, hoist and transport vehicle, heavy metallurgical machinery, petroleum and mine machine, light industry equipment, lath, light industry equipment and drilling machine etc. In particular, it can be well available in driving screw rod of injection machine, hoisting winches and capstan, and driving various slew drives.
