| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | ALPA |
| Weight: | 1000kg |
| color: | Customized |
| Model Number: | MQW |
| Place of Origin: | China (Mainland) |
| Type: | Single Rotor / Multiple Rotor |
| Particle size: | 2-45um |
| Feed Size(mm): | <3 |
| Production Capacity(kg/h): | 2-7500 |
| Air Pressure(Mpa): | 0.7-0.85 |
Quick Details
Specifications

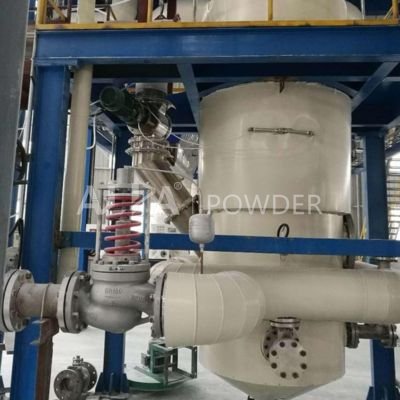

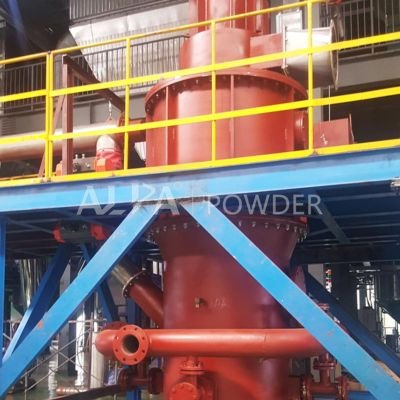

Lithium Hydroxide Ultrafine Grinding Fluidized Bed Air Jet Mill
Jet Mill Applications:
Widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries
Jet Mill Working Principle:
Jet Mill Applications:
Widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries
Jet Mill Working Principle:
Fluidized(Fluidised) bed opposed jet mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan. the high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
