| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Weight: | 5T |
| Brand Name: | SOKE |
| Condition: | New |
Quick Details
Specifications

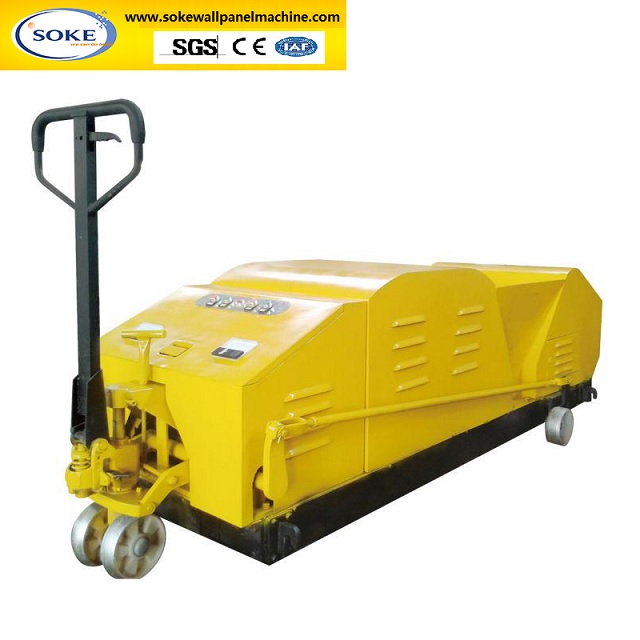

1. the machine is making the concrete lightweight wall panel.
2. the machine is using extrusion technology.
3. the raw materials are cement, slag and fly ash .
4. the machine can make 1.6-1.8m lightweight wall panel.
5. the prestressing system can prestress the steel wire.
6. the machine can make different size of concrete wall panels.
Model |
Panel width (mm) |
Panel thickness (mm) |
Dia. of holes |
Forming speed (m/min) |
Motor power (kw) |
Vibrator (kw) |
Weight (kg) |
80x600 |
595±2 |
78±1 |
8xΦ43 |
≥1.6 |
4 |
0.8 |
1010 |
90x600 |
595±2 |
88±1 |
7xΦ58 |
≥1.6 |
5.5 |
0.8 |
1010 |
100x600 |
595±2 |
98±1 |
7xΦ62 |
≥1.6 |
5.5 |
0.8 |
1035 |
120x600 |
595±2 |
118±1 |
5xΦ82 |
≥1.6 |
5.5 |
0.8 |
1650 |
200x600 |
595±2 |
198±1 |
3xΦ145 |
≥1.6 |
7.5 |
3 |
1680 |
240x280x2 |
280±2 |
238±1 |
2xΦ165 |
≥1.6 |
7.5 |
3 |
