Wire Gauge: | 0.02mm-2.0mm |
---|---|
Brand Name: | FOTMA |
Tungsten tube: | NO |
Purity: | 99.95% |
Property: | used in filaments |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
99.95% High Purity Tungsten Wires Straightened 0.02mm-2.0mm Tungsten Products
Tungsten wires are used in filaments in incandescent light bulbs; it is also used in electric contacts and arc-welding electrodes. Tungsten is used in alloys, such as steel, to which it imparts great strength. Tungsten is a lustrous and silvery white metal. the bulk metal resists attack by oxygen, acids and alkalis. Tungsten has the highest melting point of any metal.
Packing of tungsten wires

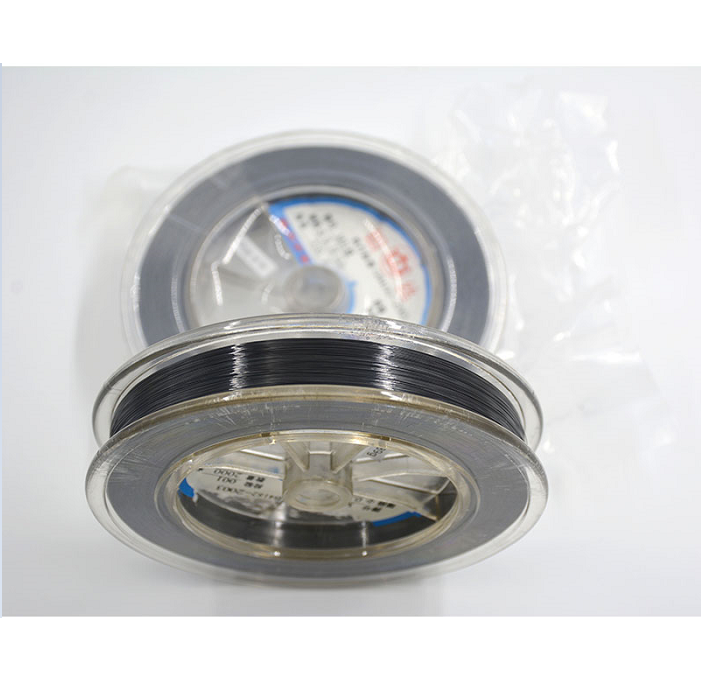

Tungsten wire in spool: plastic case or plastic vacuum packing.
Tungsten wire in coil: woven bag or plastic vacuum packing.
Note: the length or weight of single tungsten wire can be supplied by your special request.
Technical parameters
Description |
Diameter (mm) |
Length (mm) |
Wire |
Φ0.015~Φ3.200 |
-- |
Rod |
Φ0.800~Φ12.00 |
50~2000 |
Bar |
Φ12.00~Φ20.00 |
50~2000 |
Φ20.00~Φ30.00 |
50~1200 | |
Φ20.00~Φ30.00 |
50~1000 | |
Φ60.00~Φ70.00 |
50~800 | |
>Φ70.00 |
50~600 | |
Tube |
Φ30.00~Φ500.00 |
<1300 |
Note:All the products can be supplied in according to customer's requirement. |
Tolerance of tungsten wires
Diameter(mm) |
Tolerance | |
Black |
Polishing(mm) | |
Φ0.800~Φ3.000 |
±2% |
±0.03 |
>Φ3.000~Φ6.500 |
±2% |
±0.05 |
>Φ6.500~Φ11.00 |
±2% |
±0.10 |
>Φ11.00~Φ20.00 |
±2% |
±0.30 |
>Φ20.00~Φ30.00 |
±2% |
±0.50 |
>Φ30.00~Φ60.00 |
±2% |
±0.70 |
>Φ60.00~Φ70.00 |
±2% |
±1.0 |
>Φ70.00 |
±2% |
±1.5 |
Note:Special demands on tolerance available. |
