| Capacity: | 3T |
|---|---|
| Application: | Cranes |
| Power Source: | Hydraulic |
| Brand Name: | XINCAN |
| Contact: | 13056926921 |
| Model Number: | XSJ3 |
| Place of Origin: | China (Mainland) |
| Type: | Hydraulic winch |
| Model Number: | XSJ |
| Place of Origin: | Ningbo,China |
| Pressure: | 25Mpa |
| Pull Line on 1st layer: | 30-80kN |
| Rope Speed on 1st layer: | 0-30m/min |
Quick Details
Specifications

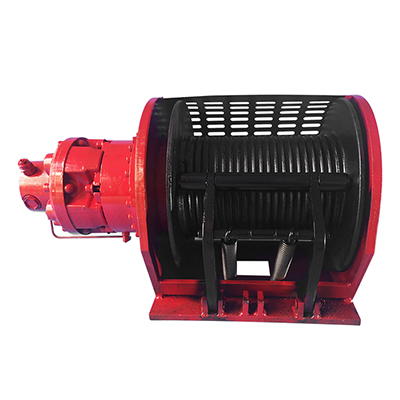

the XSJ series compact winches are widely used in vehicle rescue. It is the best choice for those situations which requires high
Pull line, low-speed and high security.
Special Features:
One stage or two stages planetary gearboxes, smooth operation and reasonable structure.
Normally closed friction type brake, high braking torque, safe and reliable operating.
Small volume, compact structure and high transmission efficiency.
Low speed and high torque hydraulic motor with long life operating.
Mounting frame is available on request.
Counterbalance valve, shuttle valve, limit switch and other accessories are also available on request.
Pull line, low-speed and high security.
Special Features:
One stage or two stages planetary gearboxes, smooth operation and reasonable structure.
Normally closed friction type brake, high braking torque, safe and reliable operating.
Small volume, compact structure and high transmission efficiency.
Low speed and high torque hydraulic motor with long life operating.
Mounting frame is available on request.
Counterbalance valve, shuttle valve, limit switch and other accessories are also available on request.
Application:
