| Talk Range: | unlimited |
|---|---|
| Storage Channel: | unlimited |
| Frequency Range: | unlimited |
| Type: | Handheld |
| Brand Name: | Tesunho |
| Dimensions: | (H) 38 x (W) 60 x (L) 135mm |
| Model Number: | TH-518 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Features:
1. SOS (Alarm button)
2. GPS function
3. Supports 2G/3G/4G
4. Large capacity (3.7V 5600mAh)
5. Quick charger 3 hours fully charged
6. Supports group call, P2P call, quick call, emergency call
7. Unlimited groups, unlimited group members
Technical details: Type Parameter Item Specification Mechanical Properties Model
No. TH-518 Dimension 38(H)60(W)135(L)mm Weight 300g Working
Temperature -30℃to + 75℃ Basic Parameter Working
Voltage 3.3V~4.2V
(Standard 3.8V) Working
Current 250mA
@ UTMS 2100/900 220mA
@ GSM 900 Peak
Current 0.8A RF Parameter WCDMA Band1:
2100MHz Band2: 1900MHz or Band5: 850MHz Band8: 900MHz GSM GSM/GPRS
: 900/1800 MHz/850/1900 MHz Maximum Output
Power WCDMA:
900/2100MHz:Power Class 3(+24dBm
+2.5dBm/-1.5dBm); GSM/GPRS
850/900 MHz: Power Class 4 (+33dBm
+2.5dBm/-0.5dBm) GSM/GPRS
1800/1900 MHz: Power Class 1(+30dBm +2.5dBm/-0.5dBm); Receiving
Sensitivity WCDMA
900:≤-108 dBm; WCDMA
2100:≤-109 dBm; GSM850/900/1800/1900
:≤-106 dBm GPS GPS GPS
Positioning, A-GPS, 1.57542GHz; Sensitivity Catch
-144dBm, Track -159dBm Technology Standard Data
Speed Rate GSM
CS: UL 9.6kpbs / DL 9.6kpbs GPRS
: Multi-slot Class 10 EDGE
: Multi-slot Class 12 WCDMA
CS: UL 64kpbs / DL 384kpbs WCDMA
PS: UL 384kpbs / DL 384kpbs Protocol HSDPA
/ WCDMA / EDGE / GPRS / GSM WiFi WiFi IEEE
802.11 b/g/n,2.4G; Maximum
RF power ≤20dBm Receiving
Sensitivity IEEE
802.11 g:≤-65dBm
Application :
Unique for: Security, Construction, Industry, Commercial use,Indoor Use.
Popular for: Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

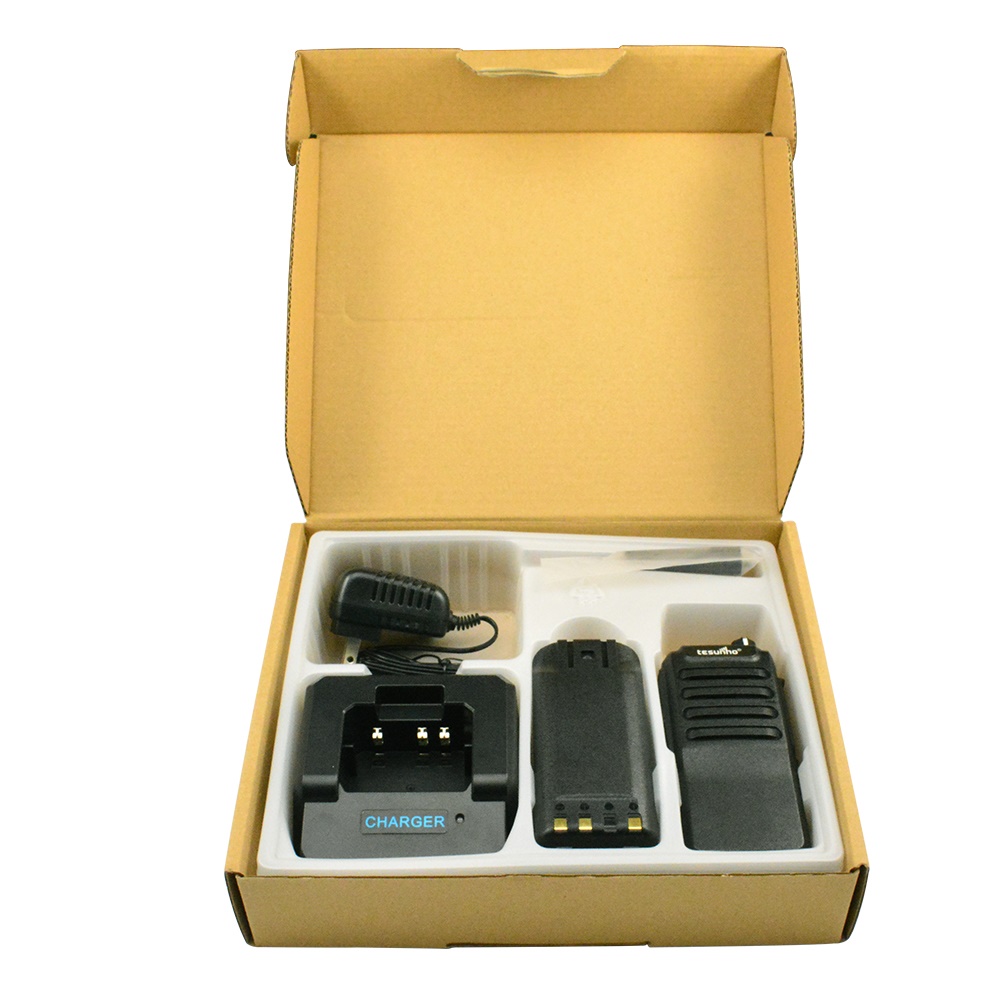

Package:
