| Application: | Instrumentation |
|---|---|
| Type: | On-line |
| Protection: | Short Circuit |
| Phase: | Single Phase |
| Brand Name: | jesudom |
| Output Voltage: | 220VAC |
| Weight: | 20 |
| Model Number: | C10KRS |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Feature:
1/2/3KVA in 2U, 6KVA in 3U
1. True double-conversion online UPS
2. Micro processor control optimizes reliability
3. Output power factor 0.8
4. Wide Input voltage range(110V 300VAC)
5. Input power factor correction
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Smart SNMP works well with either USB or RS-232 together

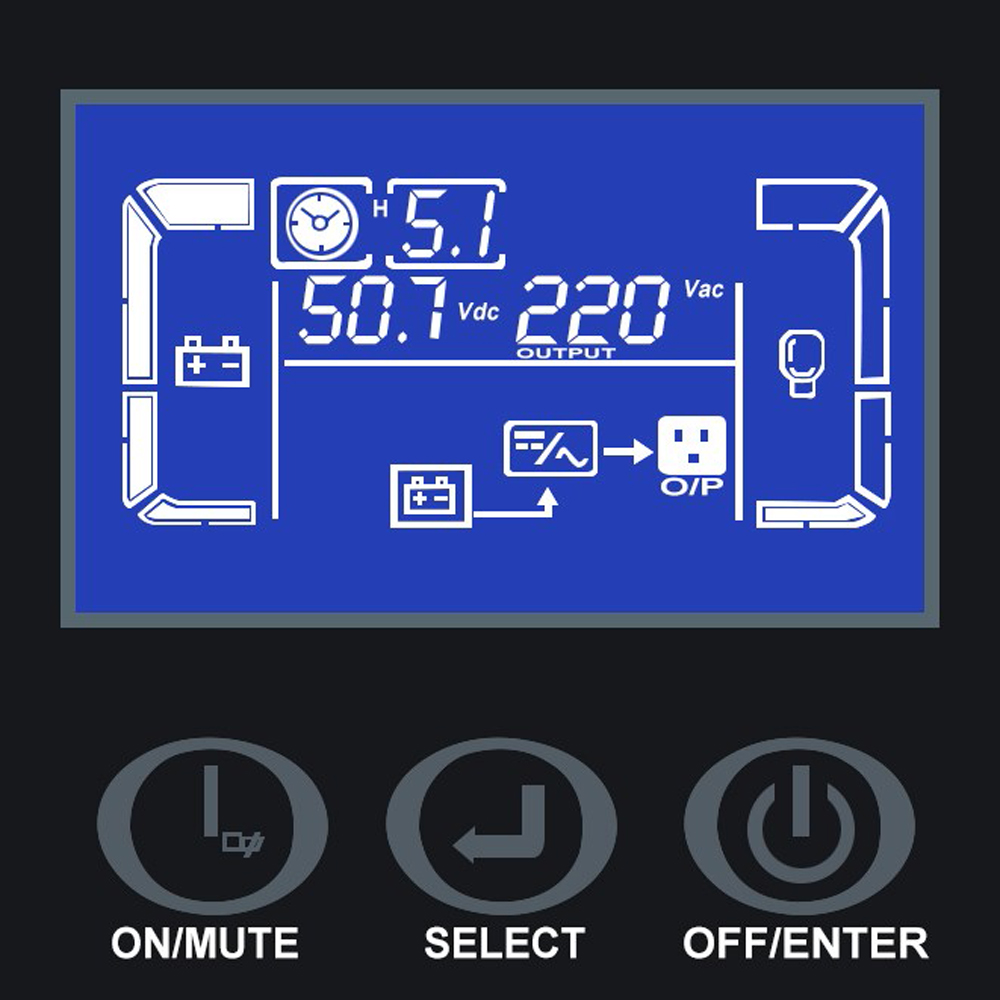

10 Comprehensive display allows easy monitoring and access of UPS status
11. True Isolation technology offers the most complete power protection and highest quality power for all IT applications.
12. SNMP Slots for remote monitoring and control
13. Load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.
14. LED / LCD option
15. Extended backup time capacity
16. Zero transfer time
TECHNICAL SPECIFICATIONS:
Model |
C10KRS |
Rated capacity |
10000VAC / 8000W |
Format |
3U |
Input Voltage Range |
115-300VAC ± 5 |
Input Frequency Range |
(45 -55) ± 0.5Hz |
Input Bypass Range |
80VAC x (1 ± 5%) 285VAC x (1 ±5%) |
BATTERY Voltage |
192V |
BATTERY Capacity and Quantity |
EXTERNAL (User buy batteries bank self) 16pcs*12V in series |
BATTERY charge current |
the max open input surge current < rated current 150% |
Output Voltage |
220VAC ± 1% (invert output) |
Output Frequency |
50±5Hz(normal AC input); 50Hz±1%(unmoral AC input) |
Output Wave Form |
Sine wave THD < 3% (linear load); sine wave THD <8% (nonlinear load) |
Overload |
130% loading ≥ 30s, recovery point is 90% loading |
Output Power Factor |
0.8 |
Output Current Peak Factor |
3: 1 |
Communication & monitoring |
RS232(convertible 485), stem node, intelligent slot(extended SNMP, SMS and other monitoring method) |
N.G. (KG) |
20 |
Size (mm) |
795*575*255 |
Application area |
OFFICE, IT ROOM, INDUSTRIAL ENVIRONMENT, Security and Protection System, Communication System and Computer Network System |
Certification |
ISO9001, ISO14001, CE, ROHS |
