Application: | Laser Cutting |
---|---|
Certification: | CE,ISO,SGS |
Brand Name: | OREE |
Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
Applicable Material: | Metal |
Laser Type: | Fiber Laser |
After-sales Service Provided: | Engineers available to service machinery overseas |
Model Number: | OR-P |
Place of Origin: | China (Mainland) |
Control Software: | Cypcut |
Cooling Mode: | Water Cooling |
CNC or Not: | Yes |
Cutting Speed: | 140m/min |
Cutting Area: | 1500*3000mm |
Cutting Thickness: | 3-50mm |
Condition: | New |
brand: | Oree |
Quick Details
Specifications

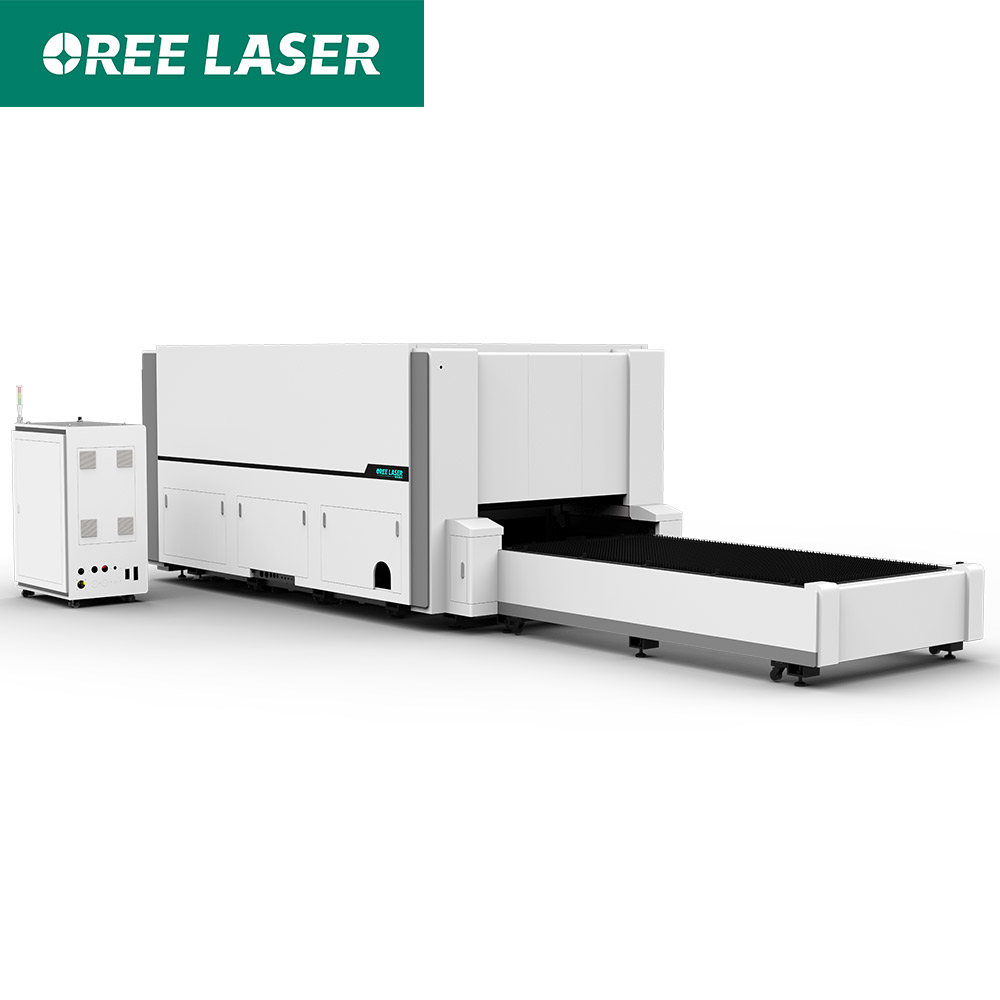

CE international standard model or-P series fiber laser cutting machines for metal sheets
the or - P laser cutting machine is Oreelaser independent research and development success of surrounded by a high power high performance of big type laser cutting machine, this machine adopts imported motor, can undertake high efficient cutting, using the DO level + 4 laser protection glass shell, can effectively reduce the noise, environmental protection, suitable for countries with high environmental protection requirements, such as Australia and other countries.
|
Model |
or-P6020 |
or-P4020 |
|
Working Area |
6000*2000mm |
4000*2000mm |
|
Applicable Materials |
Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate | |
|
Laser Power |
1000w/2000w/3000w/4000W/6000W | |
|
Materials Thickness |
Max 20mm | |
|
Laser source |
IPG/RAYCUS/MAX | |
|
Laser head |
RAYTOOLS | |
|
Dimensions(L*W*H) |
11000*3600*2100mm | |
|
Weight |
12000KG | |
|
Repeat Positioning Accuracy |
±0.02mm | |
|
Accuracy of Positioning |
±0.03mm | |
|
Max. Movement Speed |
120m/min | |
|
Max. Cutting Speed |
50m/min | |
|
Max Acceleration |
1.5G | |
|
Power Consumption |
<10KW | |
|
Specified voltage and frequency |
380V/50Hz/60Hz/60A(Customizable) |
Cast iron bed
the cast iron bed is not easy to be deformed and has stronger stability, and the service life can reach more than 50 years
Aviation aluminum beam
Aviation aluminum beam, with better dynamic performance, higher strength and longer life
Exchange Platform
Exchange platform is equipped with a new six-sided steel track as standard. the pulley and the track are inlaid and clamped. the two fit closely, and the platform exchange is more stable
Yaskawa Servo Motors
Four sets of high performance Yaskawa servo motors can ensure the accuracy, rapid traverse and stability of the machine.
Packing & delivery
the packaging of the OREE laser cutting machine is a three-layer package, with pearl cotton inside, and then wrapped with plastic film. The outside is wrapped in an aluminum foil gown, and the bottom is a steel chassis.
for small machines that need to be consolidated, we will look for the fastest logistics company that can deliver on the same day.the entire container machine can be booked in advance with our freight forwarder, and the packaged machine can be safely and quickly delivered to the customer's designated delivery location.
Our company
Oree Laser is a high-tech enterprise focusing on Reserch and Development, production and sales, with more than 15 years experience of laser industry. the factory of Oree covers an area of 30000 square meters and owns 12 production units. Its employs nearly 500 people and many pros dealing the specific area in laser indusctry for more than fifteen years.
Customer service
1)Before Sales
Answering questions from clients,offering professional aid for customer,helping clients find a suitable machine in our line. We
Also send invitation for clients to visit our factory to cut a sample and try our machine.
(2)Within Sales
Go to the clients factory to help installation and operating. Offering profeesional knowledge training to engineer for free.
(3) after Sales
Training the engineer on-site about how the operation and maintainence for the machine. We have 2 years warranty of the machine,
and we supply random visit to the client within 2 years time for regular check and maintaining. We have more than 100 professional
after-sales personnel to provide 24-hour online and offline technical services in 12 languages.
FAQ
Q: What's the package?
A: We have 3 layers package. for the outside, we adopt wood craft case. in the middle, the machine is covered by foam, to protect the machine from shaking. for the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. so please don't worry, you will receive the parcel in good condition.
Q: how to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: how can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: how do your factory do regarding quality control?
A: Quality is priority. Each OREE laser machine will be tested by 24 items. after all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE, FDA authentication.
