| After-sales Service Provided: | Overseas service center available |
|---|---|
| Brand Name: | China Shantui |
| COLOR: | Yellow |
| name: | Crawler bulldozer |
| Weight: | 17000kg |
| Model Number: | SD16 |
| Place of Origin: | China (Mainland) |
| Condition: | 100% NEW |
| Color: | Yellow |
| Machine model: | SD16 |
| ENGINE POWER: | 131kW/1850rpm |
| ENGINE MODEL: | WD10/WP10 |
| Ground pressure (kPa): | 58 |
Quick Details
Specifications

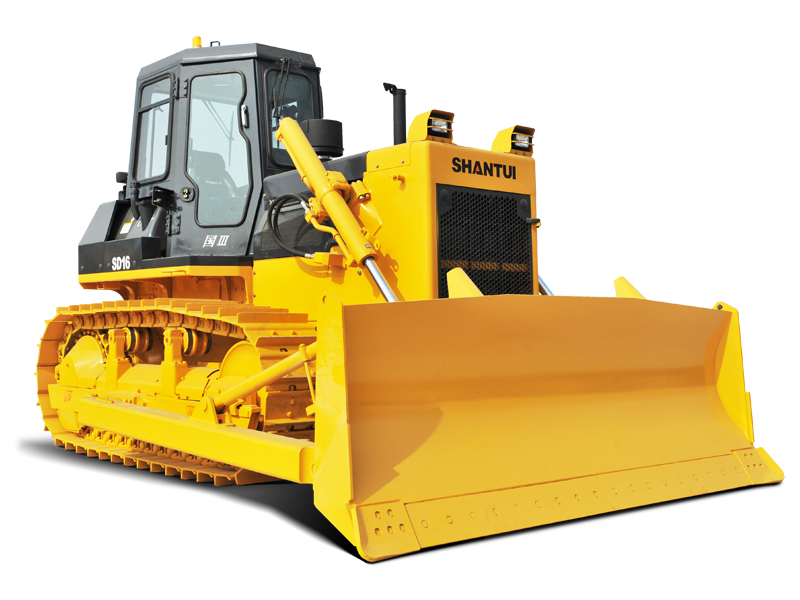

160hp China Shantui brand new bulldozer SD16 for sale
Power System
the installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
the rated power reaches 131kW, featuring high torque reserve coefficient.
the radially sealed intake system is applied to effectively prolong the engine life.
Drive system
the curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
the hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
the electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
the intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
| Parameter name | SD16 (Standard version) | SD16C (Coal version) | SD16E (Extended version) | SD16L(Super-wetland version) | SD16R (Environmental sanitation version) | SD16D (Desert version) |
| Performance parameters | ||||||
| Operating weight (Kg) | 17000 | 17500 | 17346 | 18400 | 18400 | 18200 |
| Ground pressure (kPa) | 58 | 50 | 55 | 25 | 25 | 33.2 |
| Engine | ||||||
| Engine model | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) |
| Rated power/rated speed (kW/rpm) | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 |
| Overall dimensions | ||||||
| Overall dimensions of machine (mm) | 5140*3388*3032 | 5427*3900*3032 | 5345*3388*3032 | 5262*4150*3074 | 5262*4150*3074 | 5262*4150*3074 |
| Driving performance | ||||||
| Forward speed (km/h) | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 |
| Reversing speed (km/h) | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 |
| Chassis System | ||||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 2300 | 2300 | 2300 |
| Width of track shoes (mm) | 510/560/610 | 610 | 560/510/610 | 1100/950 | 1100/660 | 810 |
| Ground length(mm) | 2430 | 2430 | 2635 | 2935 | 2935 | 2935 |
| Tank capacity | ||||||
| Fuel tank (L) | 315 | 315 | 315 | 315 | 315 | 315 |
| Working device | ||||||
| Blade type | Angle Blade, Straight tilting blade and U-shaped Blade | Coal blade | Angle Blade, Straight tilting blade and U-shaped Blade | Straight tilting blade | Sanitation blade | Straight tilting blade |
| Digging depth (mm) | 540 | 540 | 540 | 485 | 485 | 485 |
| Ripper type | Three-tooth ripper | - | Three-tooth ripper | - | - | - |
| Ripping depth (mm) | 570 | - | 570 | - | - | - |
