| Connection: | Male |
|---|---|
| Brand Name: | Daqiml |
| Type: | Coupling |
| Technics: | Casting |
| Material: | Stainless Steel |
| Head Code: | Hexagon |
| Shape: | Equal |
| Model Number: | LT90-15 |
| Place of Origin: | China (Mainland) |
| Item No.: | LT90-15 |
| Thread: | NPT1/2" |
| Conduit size: | 15mm |
| Material: | SS304 |
| Other thread: | metric, G, PG |
| Other material: | Zinc alloy, SS316/SS316L |
Quick Details
Specifications

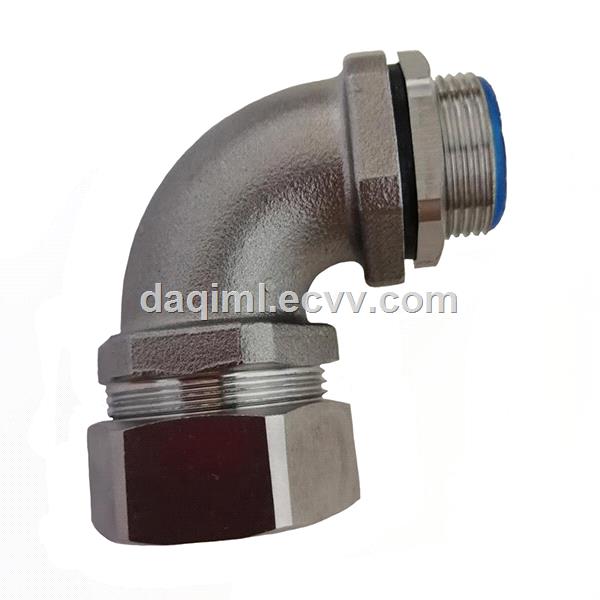

Flexible conduit elbow connectors 90 degree stainless steel liquid tight connectors
Material:SS304/316,Zinc plated Iron,Nickel plated Brass
Thread: Metric, G thread, NPT thread
Suitable Conduit Size: Φ6(3/16")- Φ150(6" )
Usage: Connecting flexible cable conduits and distribution boxes (or rigid pipes with female thread at ends) at 90 degree or 45 degree
Feature: Nice performance, tight structure. Great tightness, anti-corrosion, dust-free and waterproof when being connected with flexible conduits and distribution boxes (or pipes).
Specification: Other sizes and material can be customized.
Item No. |
Thread |
Conduit Size | ||||
90 Degree |
45 Degree |
Metric |
G Thread |
NPT Thread |
Inch |
Metric(mm) |
LT90-8 |
LT45-8 |
M16X1.5 |
- |
- |
1/4" |
Φ8 |
LT90-10 |
LT45-10 |
M16X1.5 |
- |
- |
5/16" |
Φ10 |
LT90-12 |
LT45-12 |
M20X1.5 |
G3/8" |
NPT3/8" |
3/8" |
Φ12 |
LT90-15 |
LT45-15 |
M20X1.5 |
G1/2" |
NPT1/2" |
1/2" |
Φ15 |
LT90-20 |
LT45-20 |
M25X1.5 |
G3/4" |
NPT3/4" |
3/4" |
Φ20 |
LT90-25 |
LT45-25 |
M32X1.5 |
G1" |
NPT1" |
1" |
Φ25 |
LT90-32 |
LT45-32 |
M40X1.5 |
G1-1/4" |
NPT1-1/4" |
1-1/4" |
Φ32 |
LT90-38 |
LT45-38 |
M50X1.5 |
G1-1/2" |
NPT1-1/2" |
1-1/2" |
Φ38 |
LT90-51 |
LT45-51 |
M63X1.5 |
G2" |
NPT2" |
2" |
Φ51 |
LT90-64 |
LT45-64 |
M76X2.0 |
G2-1/2" |
NPT2-1/2" |
2-1/2" |
Φ64 |
LT90-75 |
LT45-75 |
M88X2.0 |
G3" |
NPT3" |
3" |
Φ75 |
LT90-100 |
LT45-100 |
M114X2.0 |
G4" |
NPT4" |
4" |
Φ100 |
LT90-125 |
LT45-125 |
M140X2.0 |
G5" |
NPT5" |
5" |
Φ125 |
LT90-150 |
LT45-150 |
M164X2.0 |
G6" |
NPT6" |
6" |
Φ150 |
