| Printing Type: | Offset Printing Machine |
|---|---|
| Use: | For Heidelberg Printer |
| Type: | Roller |
| Brand Name: | Handong |
| Usage: | tire machine, textile machine |
| Model Number: | NAC20 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | NAC20 |
| Bore diameter: | 40mm |
| Max air pressure: | 0.6Mpa |
| Weight: | 18kgs |
| Max torque: | 200N.m |
| Dimension: | 244mm*196mm |
| Max rotating speed: | 1700r/min |
| Installation: | shaft and shaft |
| Friction coefficient: | 2.8 |
Quick Details
Specifications
NAC standard industrial pneumatic air through shaft clutch is regular friction clutch, it is equiped with cooling fan blade, so it is good for heat dissipation. Two cut design friction pads is easy for replacement. Non-asbestos material friction pads are durable and without noise.
Handong company devotes to R & D, manufacture, sale industrial transmission integration and pneumatic tension control system. Our Handong made pneumatic tooth and friction clutch or brake are not suitable for damping status usage, it is easy slipping, so as to reduce working torque. the NAC friction clutch can be used in transmission situation, so these NAC pneumatic clutch is more popular applied in the industry with bigger competition. On the other hand, these NAC pneumatic clutch is widely matched with safety chuck, air expanding shaft, web guiding system and others equipment for tension control.
Handong company devotes to R & D, manufacture, sale industrial transmission integration and pneumatic tension control system. Our Handong made pneumatic tooth and friction clutch or brake are not suitable for damping status usage, it is easy slipping, so as to reduce working torque. the NAC friction clutch can be used in transmission situation, so these NAC pneumatic clutch is more popular applied in the industry with bigger competition. On the other hand, these NAC pneumatic clutch is widely matched with safety chuck, air expanding shaft, web guiding system and others equipment for tension control.

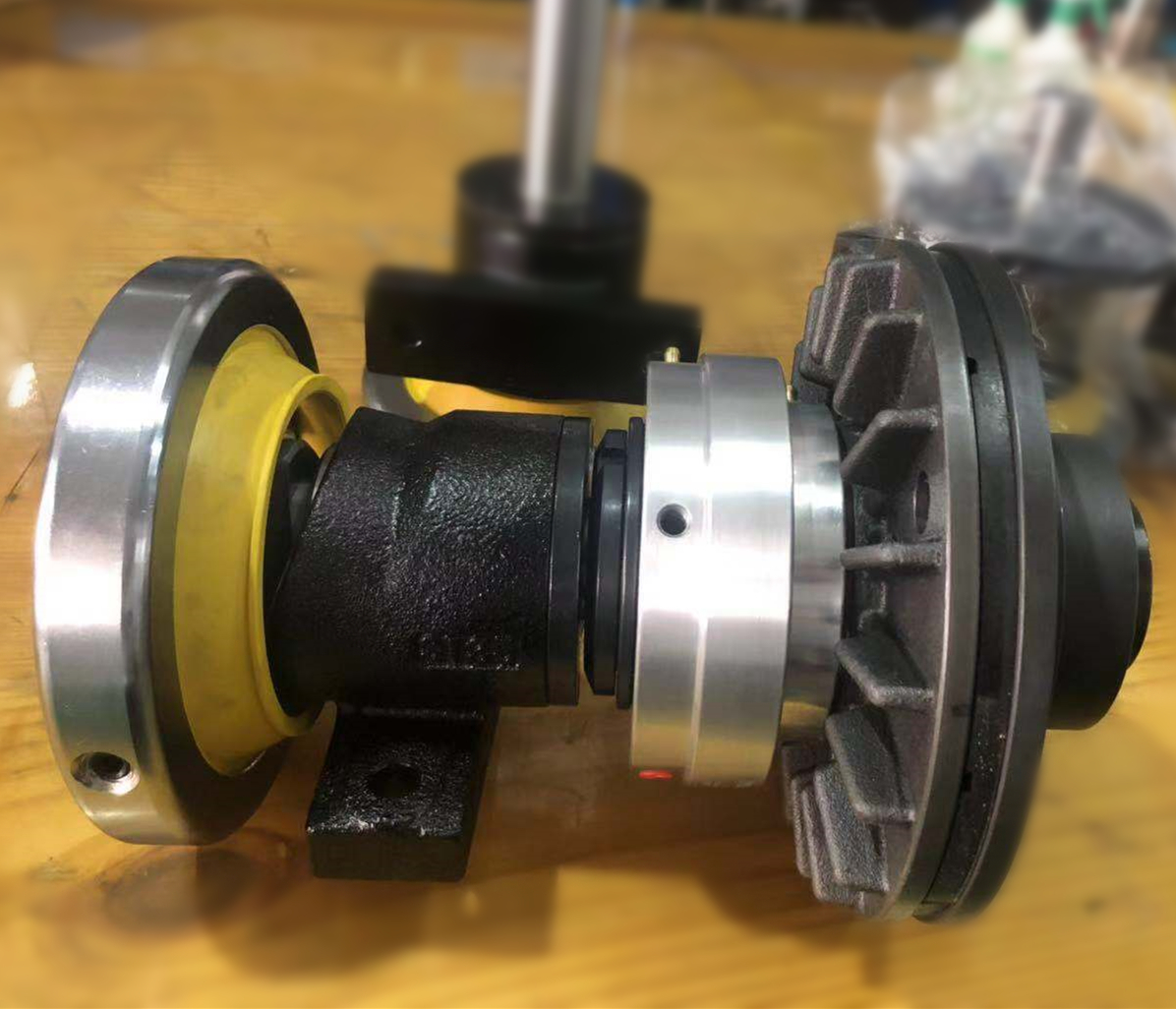

in above picture, it is just pneumatic clutch matched with foot mounted safety chuck for packing and printing machine web material tension control. If needed, please tell us in advance, then we will connected well before dispatching.
