| Printing Type: | Numbering Machine |
|---|---|
| Use: | For Heidelberg Printer |
| Type: | Main Board |
| Brand Name: | Handong |
| Usage: | sanitation truck |
| Model Number: | BDC-60 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | BDC-60 |
| Bore diameter: | 50mm |
| Max air pressure: | 0.6Mpa |
| Friction material: | steel and copper based |
| Max torque: | 600N.m |
| Dimension: | 168mm*138mm |
| Max rotating speed: | 2000r/min |
| Max connecting speed: | 2000r/min |
| Installation: | shaft and shaft |
Quick Details
Specifications

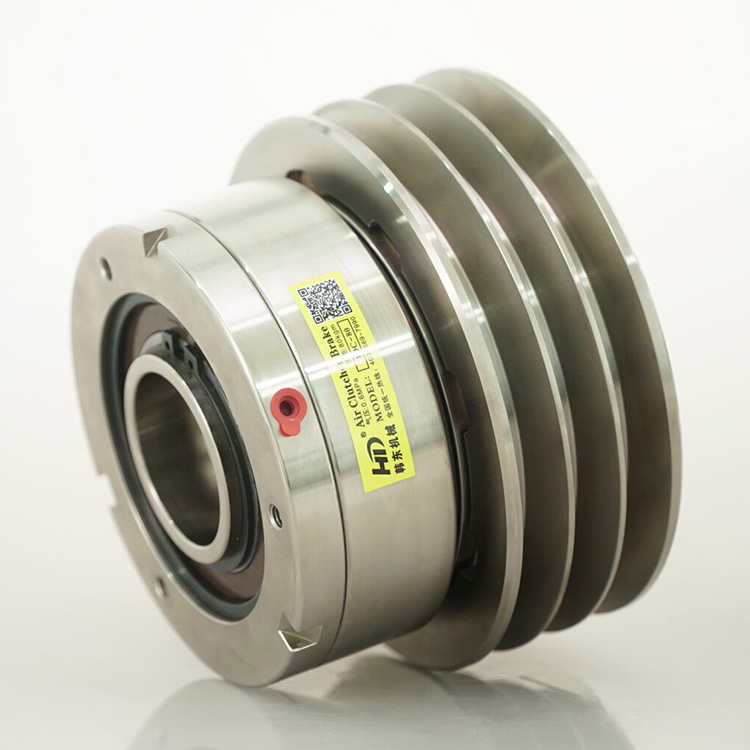

BDC series air multiple friction plates clutch has three types: BDC,BDCV,HBDC. Their main structure is the same, only some details different. BDC is the based type, HBDC is prolong its flange plate, and BDCV is equiped with a belt groove, it is convenient for belt connection.
BDC pneumatic multiple friction plates clutch is with compact size, while can transmit high torque. Following are some characters of this clutch:
1. Some group copper-based friction plates connected, compact size while transmit high torque, it is several times than other same size clutch.
2. Inside and outside friction plates, separated fast and thoroughly, without idle load.
3. Engagement and separation in constant by air pressure.
4. Integrated structure, easy installation and no worry about tooth and tooth coaxiality.
5. High speed integration and high speed rotating.
6. Dry and wet working environment both available.
7. Metal friction, in case of friction plate temperature is too high, it can't engagement frequently, so there is a requirement for engagement frequency.
1. Some group copper-based friction plates connected, compact size while transmit high torque, it is several times than other same size clutch.
2. Inside and outside friction plates, separated fast and thoroughly, without idle load.
3. Engagement and separation in constant by air pressure.
4. Integrated structure, easy installation and no worry about tooth and tooth coaxiality.
5. High speed integration and high speed rotating.
6. Dry and wet working environment both available.
7. Metal friction, in case of friction plate temperature is too high, it can't engagement frequently, so there is a requirement for engagement frequency.
BDCV model Air multiple friction plates clutch engagement by air pressure, no slippage, connecting stable. Integrated structure can transmit high torque in compact size, it is suitable for high-speed engagement and rotating. BDCV model Air multiple friction plates clutch is widely applied in automatic industry, packing and printing machinery, rubber tire machinery, engineering vehicle, sanitation vehicle modification plant and etc. BDCV model clutch is the update of BDC clutch, for sanitation vehicle using special inner structure. Clutch started after driven motor (end) linked with driving motor by air pressure, make sure driven motor load start and stop, simplify operation, reduce impact to driven motor(end) and improve driven motor (end) stability and prolong driven motor's service life.

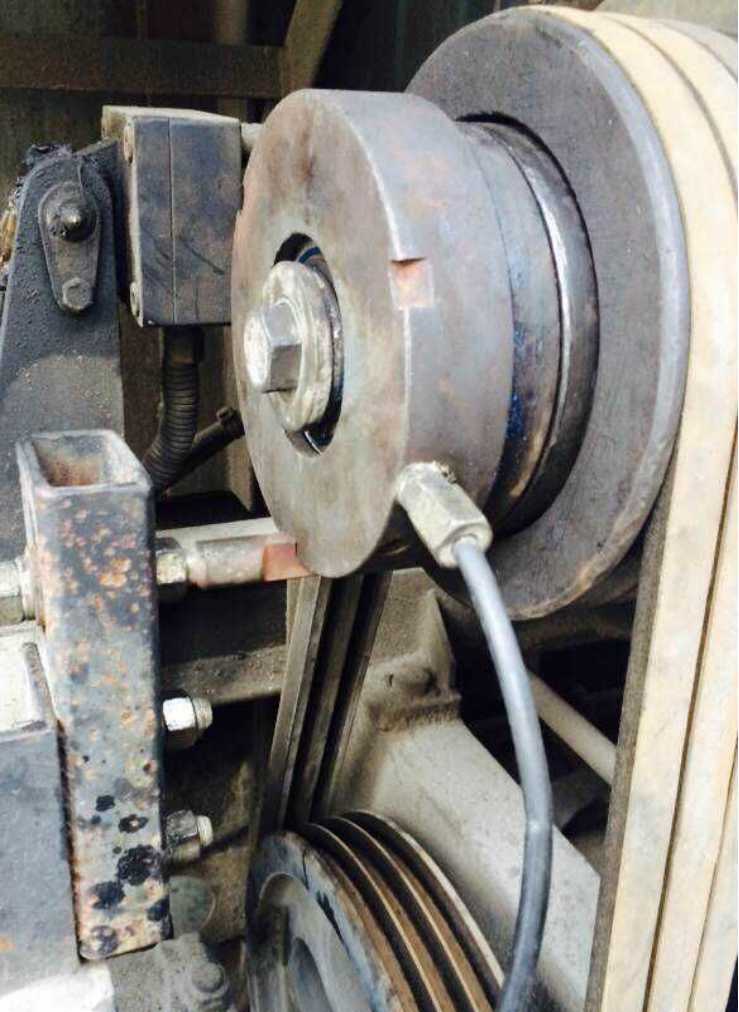

in this above case, BDCV pneumatic clutch is applied in engineering vehicle for power transmission.
